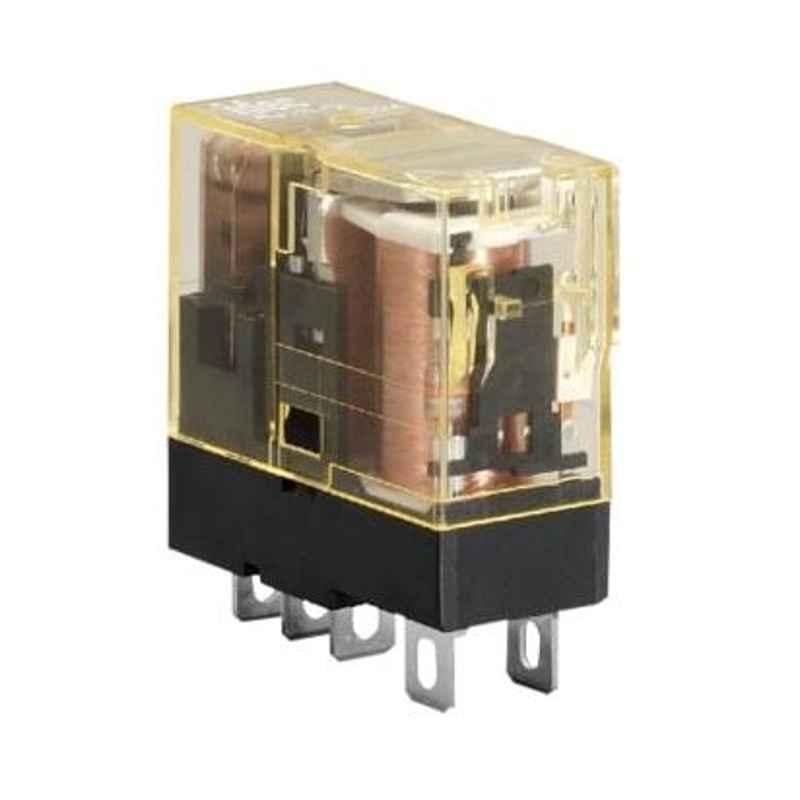

Idec 100V DPDT Blade Plug In Relay, RJ22S-CLD-D100
Idec 100V DPDT Blade Plug In Relay, RJ22S-CLD-D100

Hover to Zoom

Idec 100V DPDT Blade Plug In Relay, RJ22S-CLD-D100

Check for price and availability.
₹306₹37718% OFF

GST @18% Inclusive Price: 362

Min Orderable Qty : 1 Pack

Available on Request

More From Electronic RelaysVIEW ALL

Key features

  • Cadmium-Free Contacts.
  • Lead-Free Construction.
  • Non-Polarized LED Indicator.
  • Unique Light Guide Structure.
  • Compact & Rugged Power Relay.

Product Specifications

BrandIdec
Socket Type

Standard DIN Rail Mount: SJ2S-05BW

Finger-safe DIN Rail Mount: SJ2S-07LW

PCB Mount: SJ2S-61

Part Number

RJ22S-CLD-D100

Vibration Resistance

Operating Extremes: 10 to 55 Hz, Amplitude: 0.75 mm

Damage Limits: 10 to 55 Hz, Amplitude: 0.75 mm

Voltage

Max Switching: 250 V AC, 125 V DC

Electrical Life

AC Coil: 10000000 Operations (Minimum)

DC Coil: 20000000 Operations (Minimum)

Contact Material

AgNi (Gold Clad)

Release Time

Max. 20 ms

Contact Resistance

Max. 50 mΩ

Items in Pack

1 Piece

Operating Temperature

-40 to +70 deg C (No Freezing)

Load

Minimum Applicable: DC 1V, 100 μA

DC Coil Voltage

100 V

Dielectric Strength

Between Contact & Coil: 5000V AC, 1 min

Between Contacts of the Same Pole: 1000V AC, 1 min

Between Contacts of Different Pole: 3000V AC, 1 min

Terminal Type

Blade Plug In

Mechanical Life

AC Load: 100000 Operations (Minimum)

DC Load: 200000 Operations (Minimum)

Coil Resistance

18870 Ω ±10% (at 20 deg C)

Housing

12.7 mm

Weight

19 g

Standards

UL Recognized, CSA Certified & EN Compliant

Operating Frequency

Electrical & Mechanical: 18000 Operations/hrs

Protection Class

IP40

Series

RJ

Operating Humidity

5 to 85% RH (No Condensation)

Operating Time

Max. 20 ms

Shock Resistance

Operating Extremes NO Contact: 200 m/s², NC Contact: 100 m/s²

Damage Limits: 1000 m/s²

Contact Configuration

DPDT

Number of Poles

2

Power Consumption

0.53 W

Current

NO: 1 Amp

NC: 1 Amp
