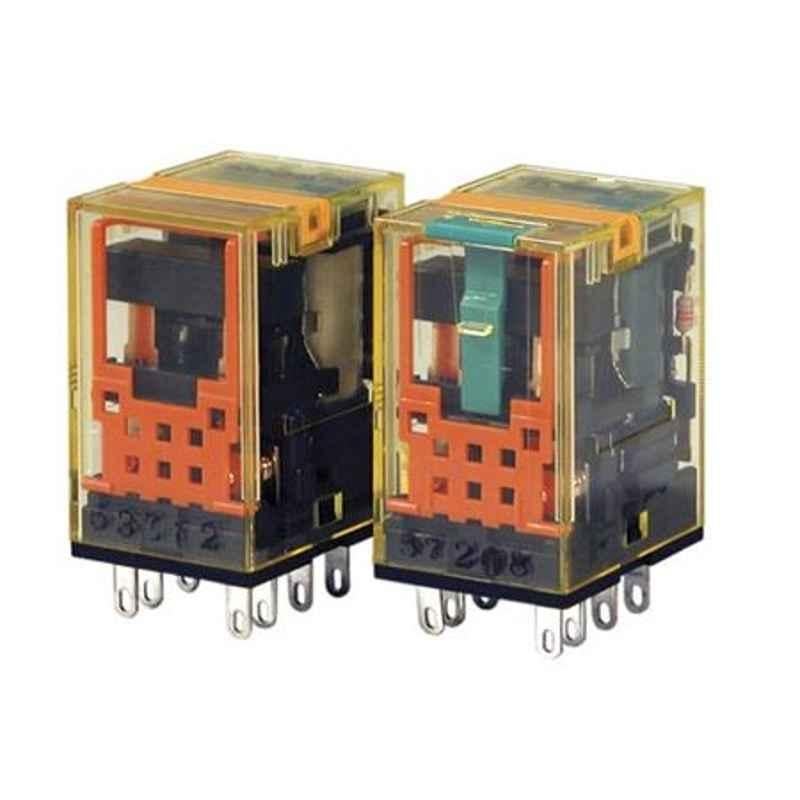

Idec 10A 110V DC DPDT Plug In Relay, RU2S-C-D110

Hover to Zoom

Idec 10A 110V DC DPDT Plug In Relay, RU2S-C-D110

IN STOCK
₹305₹50639% OFF

GST @18% Inclusive Price: 361

+-

Qty Per Pack : 1 Piece

Min Orderable Qty : 1 Pack

Key features

  • Environment Friendly.
  • Cadmium-Free Contacts.
  • Mechanical Flag Indicator.
  • Non-Polarized LED Indicator.
  • Full Featured Universal Miniature Relay.
  • No Internal Wires, Lead-Free Construction.

Product Specifications

BrandIdec
Socket Type

SU2S-11L (Spring Clamp DIN Rail Mount)

SM2S-05 (Standard DIN Rail Mount)

SM2S-05C (Finger-safe DIN Rail Mount)

SM2S-61 & SM2S-62 (PCB Mount)

Part Number

RU2S-C-D110

Vibration Resistance

Damage Limits: 10 to 55 Hz, Amplitude: 0.5 mm

Operating Extremes: 10 to 55 Hz, Amplitude: 0.5 mm

Colour

Tape: Yellow

Voltage

Max Switching: 250 V AC, 30 V DC

Contact Material

Silver Alloy

Style

Terminal: Plug In

Release Time

20 ms

Coil Type

Standard

Contact Resistance

Max. 50 mΩ

Insulation Resistance

Minimum: 100 MΩ (500V DC Megger)

Items in Pack

1 Piece

Operating Temperature

-55 to 60 deg C (No Freezing)

Load

Minimum Applicable: 24V DC, 5 mA

DC Coil Voltage

110 V

Dielectric Strength

Between Contact & Coil: 2500 V AC, 1 min

Between Contacts of Same Pole: 1000V AC, 1 min

Between Contacts of Different Pole: 2500 V AC, 1 min

Mechanical Life

AC: 50000000 Operations

DC: 100000000 Operations

Coil Resistance

12100Ω ± 10% (at 20 deg C)

Weight

35 g

Standards

UL Recognized, CSA Certified & EN Compliant

Operating Frequency

Electrical: 1800 Operations/hrs

Mechanical: 18000 Operations/hrs

Series

RU

Operating Humidity

5 to 85% RH (No Condensation)

Operating Time

20 ms

Shock Resistance

Damage Limits: 1000 m/s² (100G)

Operating Extremes: 150 m/s² (15G)

Contact Configuration

DPDT

Number of Poles

2

Power Consumption

AC: 1.1 to 1.4 VA (50 Hz), 0.9 to 1.2 VA (60 Hz)

DC: 0.9 to 1 W

Current

Continuous: 10 Amp

Check delivery and payment options ?

*Shipping charge applicable as per serviceability
* COD payment upto ₹10000
* 7 days free return, Bulk Orders (greater than 10) & heavy items are shipped through surface & may take more than 10 days for delivery.

Check

Delivery : 4-7 Days

Shipping charge applicable as per serviceability

Want to buy even more quantity?

OFFERS

  • Use Code: KWIK15 on Mobikwik and get upto 15% cashback. View More
View EMI Options *On min. purchase of ₹3000
EMIs Available View Plans
On min. purchase of ₹3000

Product Information

Idec 10A 110V DC DPDT Plug In Relay, RU2S-C-D110 is a premium quality Electronic Relays from Idec. Moglix is a well-known ecommerce platform for qualitative range of Electronic Relays. All Idec 10A 110V DC DPDT Plug In Relay, RU2S-C-D110 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Idec 10A 110V DC DPDT Plug In Relay, RU2S-C-D110, are sourced from the most reliable and official Electronic Relays vendors, chosen after performing detailed market surveys. Thus, Idec products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Idec Electronic Relays.
