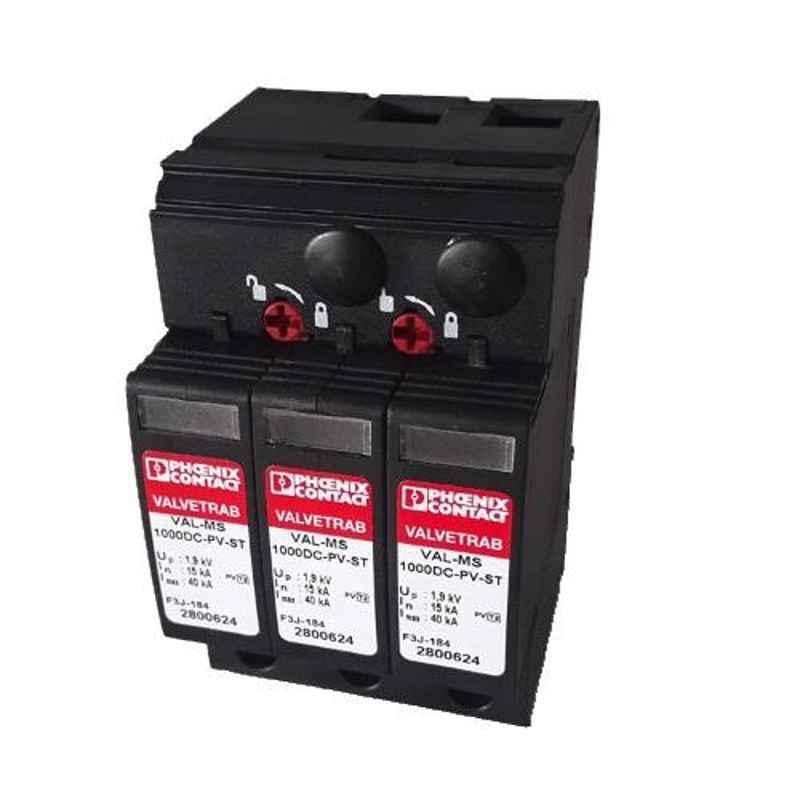

Phoenix Contact VAL-MS 1000DC-PV/2+V Black Solar Surge Protection Device
Phoenix Contact VAL-MS 1000DC-PV/2+V Black Solar Surge Protection Device

Hover to Zoom

Phoenix Contact VAL-MS 1000DC-PV/2+V Black Solar Surge Protection Device

IN STOCK
₹1,694₹2,00015% OFF

GST @18% Inclusive Price: 2000

+-

Qty Per Pack : 1 Piece

Min Orderable Qty : 1 Pack

Key features

  • Connection Method: Fork Type Cable Lug.
  • Conductor Cross Section Flexible: 1.5-16 mm².

Product Specifications

BrandPhoenix Contact
Load Current

80 Amp

Protection Level

Residual Voltage Ures: ≤ 3.7 kV

Residual Voltage Ures: ≤ 3.1 kV

Residual Voltage Ures: ≤ 3.5 kV

Residual Voltage Ures: ≤ 4 kV

Residual Voltage Ures: ≤ 4.6 kV

Residual Voltage Ures: ≤ 5 kV

Torque

Tightening: 3-4.5 Nm

AC Current

Residual IPE: ≤ 250 µA AC

Configuration

Y Configuration

Housing Material

PA 6.6-FR

Response Time

≤ 25 ns

DC Current

Residual IPE: ≤ 20 µA DC

RoHS

Environmentally Friendly Use Period= 50 Years

Colour

Black

Stand By Power Consumption

≤ 25 mVA

Connection Type

Screw

Voltage

Protection Rating: 3 kV

Protection Level Up: ≤ 3.7 kV

Residual Ures: ≤ 3.7 kV, ≤ 3.1 kV, ≤ 3.5 kV, ≤ 4 kV, ≤ 4.6 kV, ≤ 5 kV

Humidity

Permissible: 5-95%

Open Circuit Voltage

UOCSTC: ≤ 970 V DC

Discharge Current

Nominal Discharge Current in (8/20) µs: 15 kA

Maximum Discharge Current Imax (8/20) µs: 40 kA

Total Discharge Current Total (8/20) µs: 40 kA

Nominal Discharge Current In: 10 kA

Insulation Resistance

Riso: > 5 GΩ (at 500 V DC)

Notes

The Device is Intended for Touch Proof Installation in a Housing Ensure that there is a Gap of at Least 8mm Between the Active & Grounded Parts in the Connection Area

Overvoltage Category

III

Vibration

Operation: 7.5 g

DC Voltage

UCPV: 1170 V DC

Nominal Voltage

1170 V DC

Dimensions

11.1x7.9x7.8 cm

Weight

220 g

Ambient Temperature

-40 to 80 deg C

Standards

EN 50539-11

Protection Class

IP20

Type

DIN Rail Module, Two-Section & Divisible

Length

Stripping: 16 mm

Mounting type

DIN Rail: 35 mm

Pollution Degree

2

Short Circuit Current

ISCPV: 2000 Amp

SCCR: 50 kA

Current

Residual IPE: ≤ 20 µA DC & ≤ 250 µA AC

Altitude

≤ 2000 m

RETURN POLICY

Upto 7 days
returnable
Wrong
Product
Damaged
Product
Defective
Product
Check delivery and payment options ?

*Shipping charge applicable as per serviceability
* COD payment upto ₹25000
* 7 days free return, Bulk Orders (greater than 10) & heavy items are shipped through surface & may take more than 10 days for delivery.

Check

Shipping charge applicable as per serviceability

Want to buy even more quantity?

View EMI Options *Minimum order placed should be Rs. 3000 across banks while for Bajaj Finserv it should be Rs. 4500
EMIs Available View Plans
On min. purchase of Rs. 3000 across banks and Rs. 4500 for Bajaj Finserv

Product Information

Phoenix Contact VAL-MS 1000DC-PV/2+V Black Solar Surge Protection Device is a premium quality product from Phoenix Contact. Moglix is a well-known ecommerce platform for qualitative range of Surge Protection Devices. All Phoenix Contact VAL-MS 1000DC-PV/2+V Black Solar Surge Protection Device are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Phoenix Contact VAL-MS 1000DC-PV/2+V Black Solar Surge Protection Device, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Phoenix Contact products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Phoenix Contact Surge Protection Devices .
