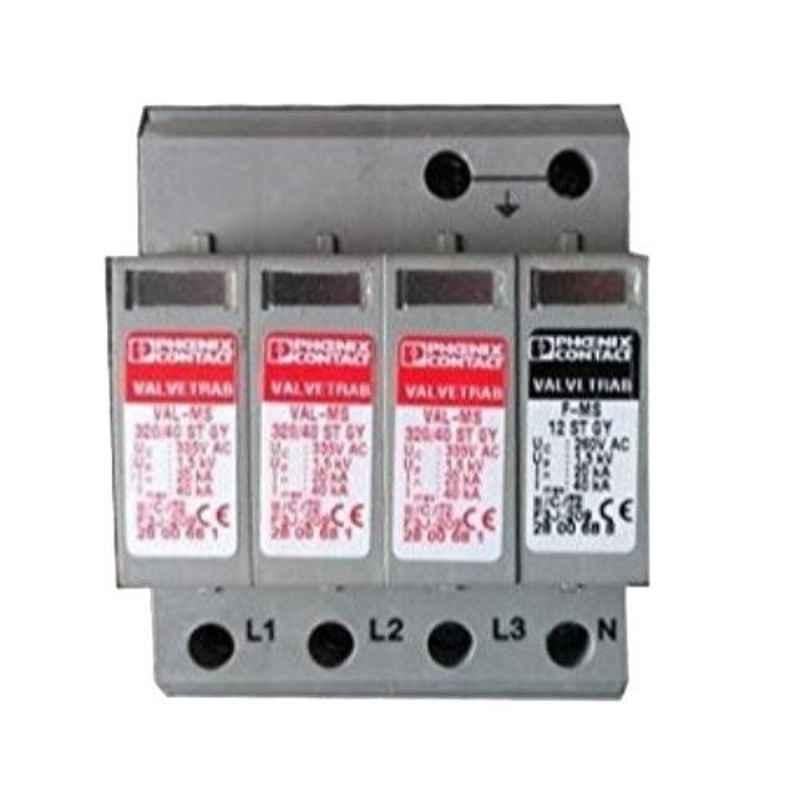

Phoenix Contact VAL-MS 320/40/3+1 GY1 Triple Phase Grey AC Surge Protection Device, 2801321

AVAILABLE ON REQUEST

About This Product

Key Features

Comes with Remote Indication.
Connection Method: Fork Type Cable Lug.
Conductor Cross Section Flexible: 1.5-16 mm².

Product Specifications

Brand	Phoenix Contact
AC Voltage	Maximum Continuous Operating Voltage UC (L-N): 335 V AC Maximum Continuous Voltage UC (N-PE): 260 V AC
Altitude	≤ 2000 m
Ambient Temperature	-40 to 80 deg C
Colour	Grey
Connection Type	Screw
Current	Residual IPE: ≤ 5 µA
Current Rating	Follow Interrupt Rating: 100 Amp
Depth	65.7 mm
Dimensions	10.9x7.9x7.7 cm
Discharge Current	Nominal in (8/20) µs: 20 kA Maximum Max (8/20) µs: 40 kA
Frequency	50-60 Hz
Height	89.8 mm
Housing Material	PA 6.6
Humidity	Permissible: 5-95%
Item Code	2801321
Length	Stripping: 16 mm
Load Current	80 Amp
Mounting type	DIN Rail: 35 mm
Nominal Voltage	240-415 V AC
Number of Positions	4
Phase	Triple Phase
Protection Class	IP20
Protection Level	Voltage Up (L-N): ≤ 1.6 kV Voltage Up (L-PE): ≤ 1.9 kV Voltage Up (N-PE): ≤ 1.5 kV
Response Time	tA (L-N): ≤ 25 ns tA (L-PE): ≤ 100 ns tA (N-PE): ≤ 100 ns
RoHS	Environmentally Friendly Use Period= 50 Years
Short Circuit Current	Rating ISCCR: 25 kA
Stand By Power Consumption	≤ 450 mVA
Surge Protection	Optical
Torque	Tightening: 3-4.5 Nm
Type	DIN Rail Module, Two-Section & Divisible
Vibration	Operation: 5 g
Voltage	Residual Ures (L-N): ≤ 1.6 kV, ≤ 1.5 kV, ≤ 1.3 kV, ≤ 1.1 kV Residual Ures (L-PE): ≤ 1.9 kV, ≤ 1.5 kV, ≤ 1.3 kV, ≤ 1.2 kV Residual Voltage Ures (N-PE) ≤ 0.4 kV, ≤ 0.25 kV, ≤ 0.15 kV, ≤ 0.1 kV
Weight	420 g
Width	71 mm
Country of origin	India
Manufacturer Details	PHOENIX CONTACT (I) Pvt. Ltd., A-58/2, Okhla Industrial Area, Phase - II, New Delhi-110 020, Phone: +91.11.71810500/800, E-mail: in-info@phoenixcontact.com
Packer Details	PHOENIX CONTACT (I) Pvt. Ltd., A-58/2, Okhla Industrial Area, Phase - II, New Delhi-110 020, Phone: +91.11.71810500/800, E-mail: in-info@phoenixcontact.com
Common/Generic Name	Surge Protection Device
Dimensions LxWxH	9x5.4x7 cm
Weight	420 g

Show All Specifications

Product Details

Phoenix Contact VAL-MS 320/40/3+1 GY1 Triple Phase Grey AC Surge Protection Device, 2801321 is a premium quality product from Phoenix Contact . Moglix is a well-known ecommerce platform for qualitative range of Surge Protection Devices. All Phoenix Contact VAL-MS 320/40/3+1 GY1 Triple Phase Grey AC Surge Protection Device, 2801321 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Phoenix Contact VAL-MS 320/40/3+1 GY1 Triple Phase Grey AC Surge Protection Device, 2801321, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Phoenix Contact products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Phoenix Contact Surge Protection Devices .
