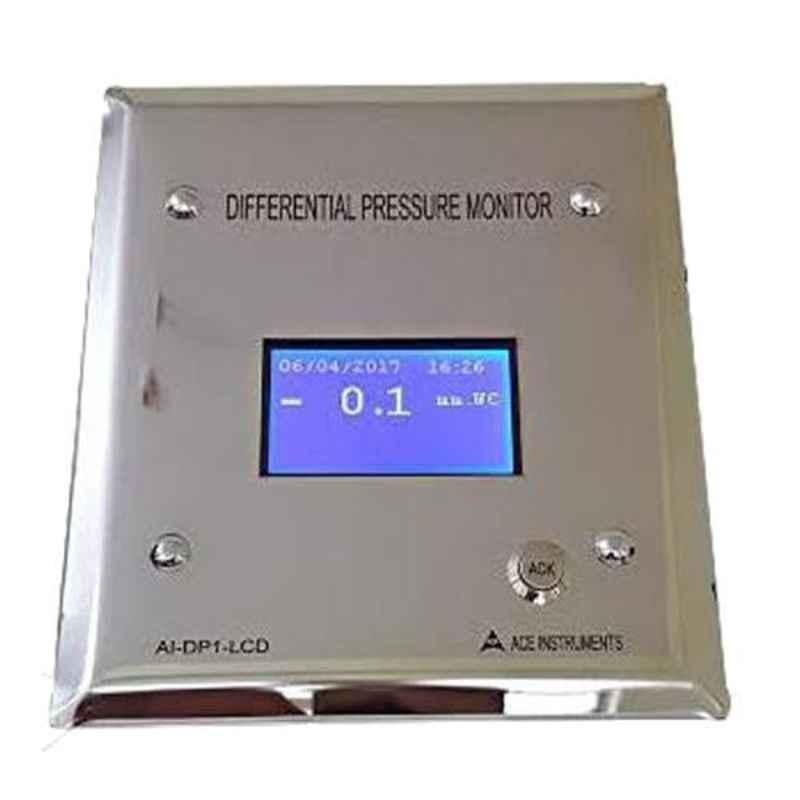

ACE Instruments AI-DP1-LCD 4-20mA & RS485 Output Differential Pressure Indicator Transmitter

Name: ACE Instruments AI-DP1-LCD 4-20mA & RS485 Output Differential Pressure Indicator Transmitter
Brand: Ace Instruments
SKU: MSNE5N8JDLRYKL
Price: 26619 INR
Availability: OutOfStock

₹26,619 (Incl. of all taxes)

₹22,554 ₹4,065 GST

MRP ₹27,972 4% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Incorporated Signal Caution for Set Point Infringement.
Incorporate Unit Transformation at the Press of a Key Between Mm. W.C. & Pascals.
Profundity for Cleanroom Measured Divider Fitment & Rs 485 Modbus Correspondence for BMS-SCADA-PLC incorporation.
Ace Instruments Make LCD Digital Differential Pressure Indicator with 4-20Ma & Rs485 Output are Automated Readout Differential Weight Screens Planned for Assessing the Room Weight Inside Pharma Tidy Up Rooms, Recuperating Office Movement Theaters & Repression Rooms.
Digital Differential Pressure Indicator is the Part Substitution for the Straightforward Magnahelic Measures & are Definitely Not Hard to Use with Clear 4 Digits LED Appear.
It Accompanies Worked in Sensor & Additionally a Buzzer Alarm with Affirmation Office for Procedure Infringement Alert.

Show All Key Features

Product Specifications

Brand	Ace Instruments
Accuracy	±0.5% of Full Scale
Applications	Pharmaceutical Clean Rooms, Laminar Air Flow Cabinets, HVAC, Biosafety Cabinets & AHUs
Calibration	Provided at no Extra Cost Valid for 1 year Traceable to Electronic Test & Development Centre
Communication	Isolated RS485 Modbus Protocols- Optional
Connection	2 Pcs Hose Nipples of 4mm Stainless Steel at the Back
Dimensions	Instrument Enclosure: 100x90x30 mm
Display	Graphic Backlit 128x64 LCD
Material	Stainless Steel
Medium	Air or Gases
Model No	AI-DP1-LCD
Pressure Range	-0.20 to 0.20 In.W.C, -10 to 10 mm W.C, -100 to 100 Pascals, 0.0 to +25.0 mm W.C & - 0 to 250 Pascals
Resolution	1 Pascals
Sensors	Integrated High Speed Differential Pressure Sensor
Voltage	24 V DC
Weight	800 g
Country of origin	India
Manufacturer Details	INSTRUKART HOLDINGS, 18, Street 1A,Czech Colony Sanath Nagar , Hyderabad, Telangana-500018, India , Phone: +91-8448233444
Packer Details	INSTRUKART HOLDINGS, 18, Street 1A,Czech Colony Sanath Nagar , Hyderabad, Telangana-500018, India , Phone: +91-8448233444
Common/Generic Name	Indicator Transmitter
Dimensions LxWxH	350x185x130 mm
Weight	800 g

Show All Specifications

Product Details

ACE Instruments AI-DP1-LCD 4-20mA & RS485 Output Differential Pressure Indicator Transmitter is a premium quality product from Ace Instruments . Moglix is a well-known ecommerce platform for qualitative range of Thermo Hygrometer. All ACE Instruments AI-DP1-LCD 4-20mA & RS485 Output Differential Pressure Indicator Transmitter are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture ACE Instruments AI-DP1-LCD 4-20mA & RS485 Output Differential Pressure Indicator Transmitter, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Ace Instruments products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Ace Instruments Thermo Hygrometer .
