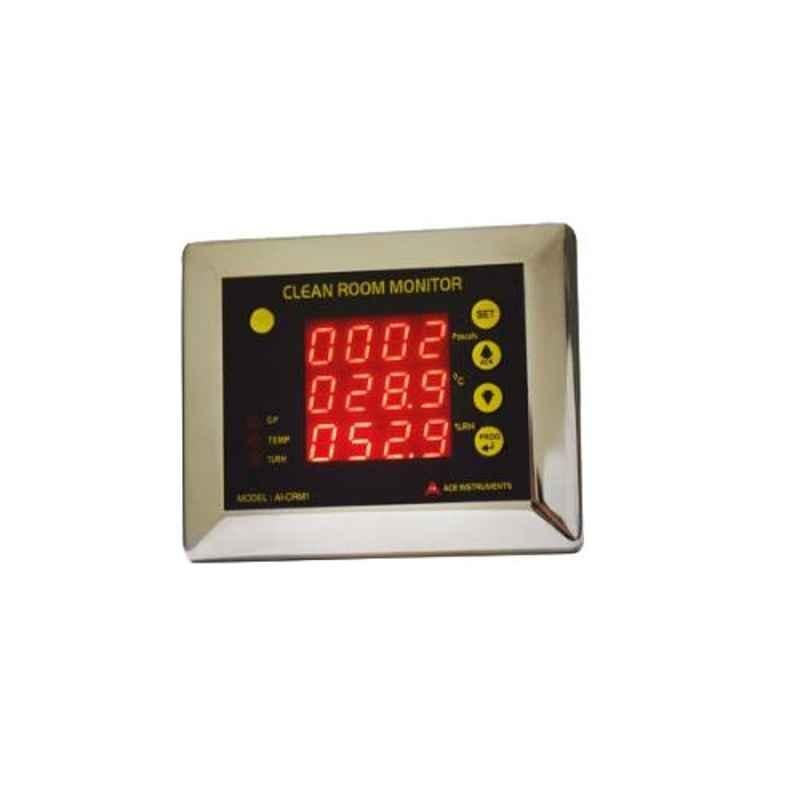

ACE Instruments Mini Pharma Clean Room Monitor

Name: ACE Instruments Mini Pharma Clean Room Monitor
Brand: Ace Instruments
SKU: MSN75DQRGJGV92
Price: 17472 INR
Availability: OutOfStock

₹17,472 (Incl. of all taxes)

₹14,804 ₹2,668 GST

MRP ₹19,159 8% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Differential Pressure 0-25mm W.C or 250 pascals.
Differential Pressure Entry 2 Nos. 4mm Hose Nipples at top.
Singular LED for Process Violation Visual Alarm.
The Sensors for Each of the 3 Parameters are Incorporated Inside for Usability & Establishment.
The Clean Room Monitor is Intended for the Least Cabling & Simple Flush Mounting Modular Wall or Brick Walls of Clean Rooms.
The Ideal Room Monitor Model Ai-CRM1 is Expected for Least Cabling & Basic Flush Mounting in Estimated Divider Sheets or Block Dividers of Clean Room.
Mini Pharma Clean Room Monitor is Proposed to Measure the Fundamental Boundaries of Temperature, Humidity & Differential Load in Pharma Tidy Up Room Applications.

Show All Key Features

Product Specifications

Brand	Ace Instruments
Accuracy	±0.5 deg C
Buzzer	Integrated Buzzer for Alarm in Case of Process Violation of any of the 3 Parameters
Calibration	Provided at no Extra Cost Valid for 1 year Traceable to Electronic Test & Development Centre
Communication	RS-485 Modbus Protocol Optional
Dimensions	15x12x13 cm, Enclosure: 73x72x40 mm & Stainless Steel Front Plate: 110x90 mm
Display	3 Line Red 7 Segment LED Display, 4 Digits for % RH Humidity on Line 2, 4 Digits
Enclosure	MS Powder Coated Body with Stainless Steel Front Flush Plate for Modular Wall Mounting, Optional Concealed Box Brick Wall Mounting Contact Store
Mounting	Wall Mounting
Parameters Measured	Differential Pressure, Relative Humidity & Temperature
Relative Humidity	0-100% RH
Resolution	0.1 deg C
Sensitivity	250 mA
Sensor Type	Capacitive Polymer Sensing for Relative Humidity, Piezo Resistive Sensor for Differential Pressure & Polymer Sensing for Temperature
Setting	By 4 Keys on the Front Stainless Steel Panel
Temperature	-30 to 50 deg C
Voltage	24 V DC
Warranty	1 Year
Weight	600 g
Country of origin	India
Manufacturer Details	INSTRUKART HOLDINGS, 18, Street 1A,Czech Colony Sanath Nagar , Hyderabad, Telangana-500018, India , Phone: +91-8448233444
Packer Details	INSTRUKART HOLDINGS, 18, Street 1A,Czech Colony Sanath Nagar , Hyderabad, Telangana-500018, India , Phone: +91-8448233444
Common/Generic Name	Room Monitor
Dimensions LxWxH	15x12x13 cm
Weight	600 g

Show All Specifications

Product Details

ACE Instruments Mini Pharma Clean Room Monitor is a premium quality product from Ace Instruments . Moglix is a well-known ecommerce platform for qualitative range of Thermo Hygrometer. All ACE Instruments Mini Pharma Clean Room Monitor are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture ACE Instruments Mini Pharma Clean Room Monitor, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Ace Instruments products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Ace Instruments Thermo Hygrometer .
