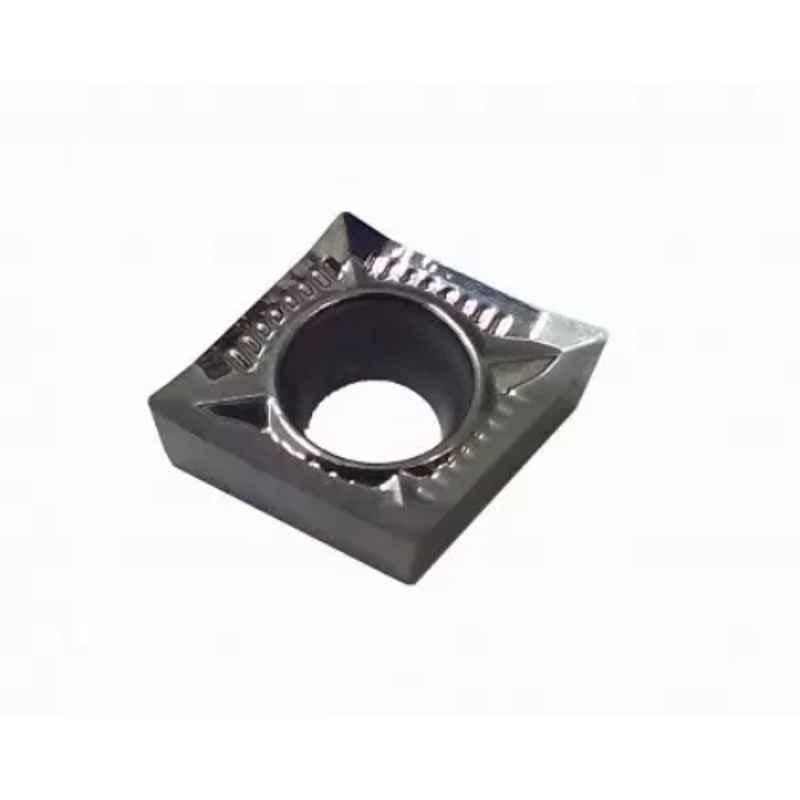

Alumina CCGT-AL 8.8mm Rhombic 80 Positive Tungsten Carbide Turning Insert

Name: Alumina CCGT-AL 8.8mm Rhombic 80 Positive Tungsten Carbide Turning Insert
Brand: Alumina
SKU: MSNG9VNWQV1DKP
Price: 474 INR
Availability: OutOfStock

₹158 (Incl. of all taxes)

₹135 ₹23 GST

MRP ₹345 54% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Alumina
Additional Details	Cutting Condition: 0.03~0.50 fn & 0.10~5.00 ap ISO Designation: 09T308-AL Insert IC Size (D): 9.52 mm
Corner Radius	0.8 mm
Cutting Edge Length	8.8 mm
D1 (mm)	4.4 mm
Material	Tungsten Carbide
Model	CCGT-AL
Relief Angle	7
Shape	Rhombic 80 Positive
Thickness	3.97 mm
Country of origin	South Korea
Manufacturer Details	CT Tools, 13-40, Songdogwahak-ro 16beon-gil, Yeonsu-gu, Incheon 21984, South Korea
Packer Details	CT Tools, 13-40, Songdogwahak-ro 16beon-gil, Yeonsu-gu, Incheon 21984, South Korea
Importer Details	CT Tools, Industrial Area Doddaballapura, National Highway 207, Nagandenahalli, Karnataka, 561205
Common/Generic Name	Turning Insert
Dimensions LxWxH	13x16x14 mm
Weight	60 g

Show All Specifications

Product Details

Introducing the Alumina CCGT-AL 8.8mm Rhombic 80 Positive Tungsten Carbide Turning Insert. This high-quality turning insert is designed for optimal performance and precision in various machining operations.

Featuring a rhombic 80 positive shape, this insert ensures efficient chip evacuation and improved surface finish. With a thickness of 3.97mm, it provides stability and longevity during cutting processes. The relief angle of 7 degrees promotes smooth material removal and reduces cutting forces, resulting in enhanced tool life.

The corner radius of 0.8mm allows for versatility and the ability to perform various operations with ease. Its D1 measurement of 4.4mm makes it compatible with a wide range of turning tools.

The Alumina CCGT-AL 8.8mm Rhombic 80 Positive Tungsten Carbide Turning Insert is designed for cutting conditions ranging from 0.03 to 0.50 fn and 0.10 to 5.00 ap. This makes it a versatile tool suitable for numerous applications.

When it comes to precision turning, trust the Alumina brand to deliver exceptional quality and performance. Upgrade your machining capabilities with the Alumina CCGT-AL 8.8mm Rhombic 80 Positive Tungsten Carbide Turning Insert.
