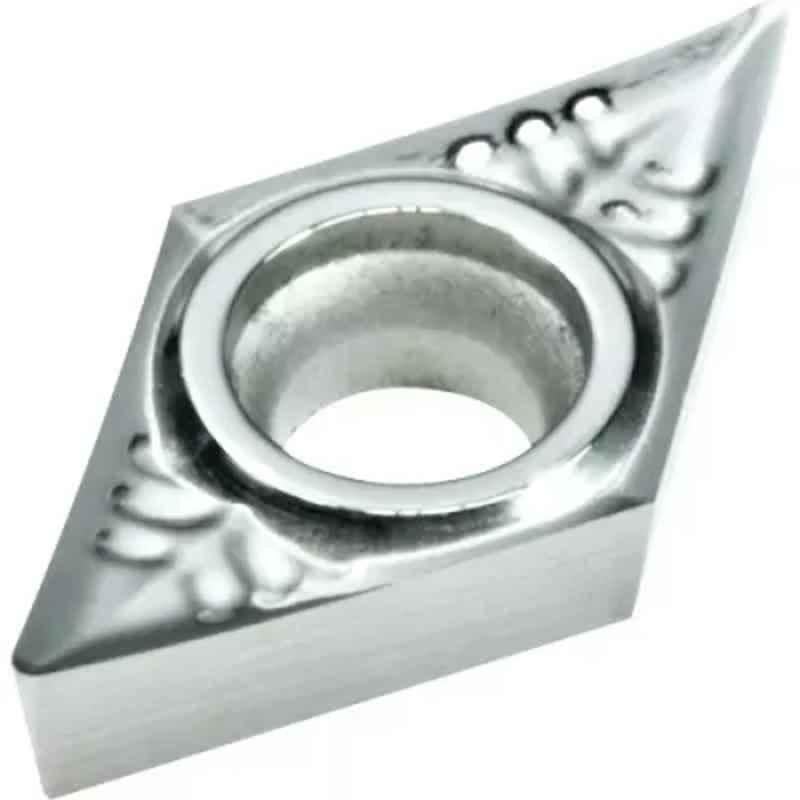

Alumina DCGT-AL 11.4mm Rhombic 50 Positive Tungsten Carbide Turning Insert

Name: Alumina DCGT-AL 11.4mm Rhombic 50 Positive Tungsten Carbide Turning Insert
Brand: Alumina
SKU: MSNO5WNGQMER51
Price: 498 INR
Availability: OutOfStock

₹166 (Incl. of all taxes)

₹141 + ₹25 GST

MRP ₹360 53% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Alumina
Additional Details	Cutting Condition: 0.02~0.30 fn & 0.05~4.00 ap ISO Designation: 11T302-AL Insert IC Size (D): 9.52 mm
Corner Radius	0.2 mm
Cutting Edge Length	11.4 mm
D1 (mm)	4.4 mm
Material	Tungsten Carbide
Model	DCGT-AL
Relief Angle	7
Shape	Rhombic 50 Positive
Thickness	3.97 mm
Country of origin	South Korea
Manufacturer Details	CT Tools, 13-40, Songdogwahak-ro 16beon-gil, Yeonsu-gu, Incheon 21984, South Korea
Packer Details	CT Tools, 13-40, Songdogwahak-ro 16beon-gil, Yeonsu-gu, Incheon 21984, South Korea
Importer Details	CT Tools, Industrial Area Doddaballapura, National Highway 207, Nagandenahalli, Karnataka, 561205
Common/Generic Name	Turning Insert
Dimensions LxWxH	13x16x14 mm
Weight	60 g

Show All Specifications

Product Details

Introducing the Alumina DCGT-AL 11.4mm Rhombic 50 Positive Tungsten Carbide Turning Insert – the perfect tool for all your turning needs. This precision-crafted insert boasts a D1 measurement of 4.4mm, ensuring a secure and seamless fit. Designed for durability and reliability, this turning insert is built to withstand even the toughest cutting conditions, operating optimally with a cutting range of 0.02 to 0.30 fn and 0.05 to 4.00 ap. The model DCGT-AL guarantees improved performance with its relief angle of 7 degrees, providing efficient chip evacuation. With a corner radius of 0.2mm and a thickness of 3.97mm, this rhombic 50 positive insert offers enhanced versatility and precision. Trust the Alumina brand for superior quality and exceptional results. Transform your turning experience with the Alumina DCGT-AL 11.4mm Rhombic 50 Positive Tungsten Carbide Turning Insert.
