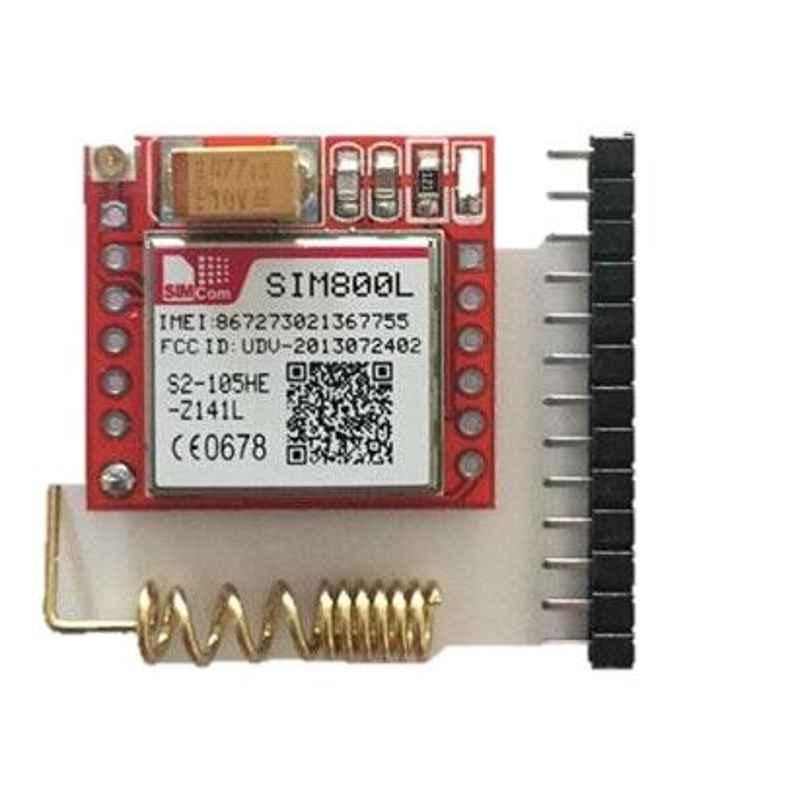

Embeddinator SIMCOM 800L GSM Module

Name: Embeddinator SIMCOM 800L GSM Module
Brand: Embeddinator
SKU: MSNG9VN2V21PKP
Price: 529 INR
Availability: OutOfStock

₹529 (Incl. of all taxes)

₹503 + ₹26 GST

MRP ₹892 40% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

PWM/Buzzer Vibrational Motor Control.
AT Command Interface with Auto Baud Detection.
One Full Function UART Port, and Can be Configured to Two Independent Serial Ports.
One USB Port can be Used as Debugging and Firmware Upgrading.
Audio Channels Which Include a Microphone Input & a Receiver Output.
Programmable General Purpose Input & Output.
One SIM Card Interface.
Frequency Bands GPRS Multi-Slot Class 12.

Show All Key Features

Product Specifications

Brand	Embeddinator
Applications	Make and receive voice calls using a headset or an external 8Ω speaker & electret microphone. Send and receive SMS messages. Send and receive GPRS data (TCP/IP, HTTP, etc.). Scan and receive FM radio broadcasts
Compatible For	Bluetooth function, one PWM, 5x5x2 Keypads, Quad-band 850/900/1800/1900MHz-connect onto any global GSM network with any 2G SIM (in the USA, T-Mobile is suggested) & Support SIM card: 1.8V, 3V
DC Current	1.2 mA
Items in Pack	1 Piece
Ports	Serial Port: Can be used for AT commands for data stream USB Port: Can be used as debugging and firmware upgrading
Power Supply	3.4 V-4.4 V
Power source	DC
Visible Interface	PCM/SPI/SD card interface, only one function can be accessed synchronously
Country of origin	India
Manufacturer Details	ALPHA SHOPE, F-5 okhla Industrial area , Phase -1 Phase -1 , Delhi, Delhi-110020, India , Phone: +91-8448233444
Packer Details	ALPHA SHOPE, F-5 okhla Industrial area , Phase -1 Phase -1 , Delhi, Delhi-110020, India , Phone: +91-8448233444
Common/Generic Name	GSM Module
Weight	4 g

Show All Specifications

Product Details

Embeddinator SIMCOM 800L GSM Module is a premium quality product from Embeddinator . Moglix is a well-known ecommerce platform for qualitative range of GSM & GPS Antenna. All Embeddinator SIMCOM 800L GSM Module are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Embeddinator SIMCOM 800L GSM Module, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Embeddinator products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Embeddinator GSM & GPS Antenna .
