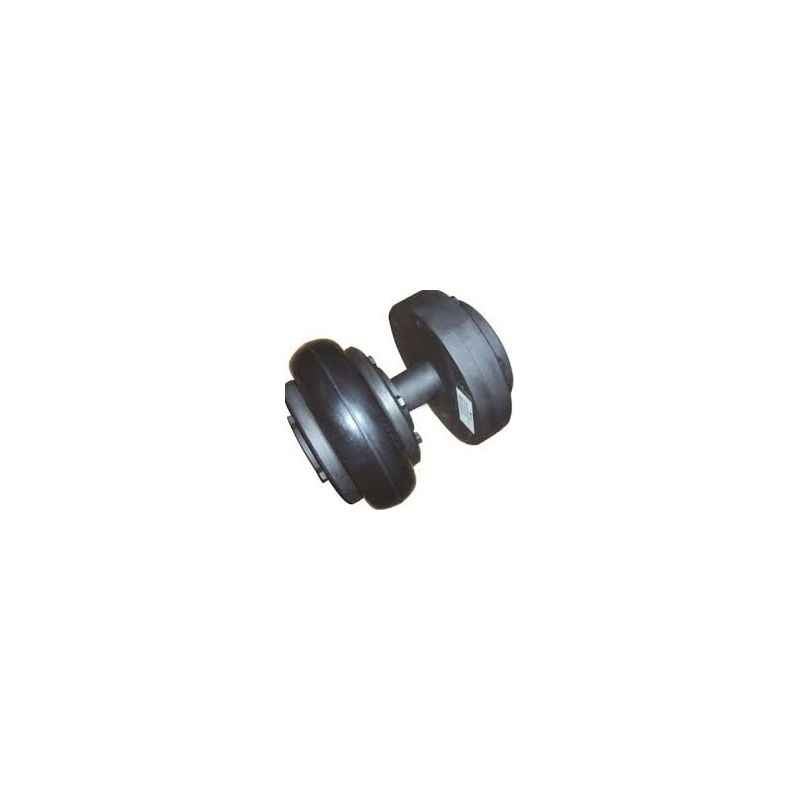

Fenner Fenaflex Spacer Coupling, Taper Lock, F120 SM35 180

Name: Fenner Fenaflex Spacer Coupling, Taper Lock, F120 SM35 180
Brand: Fenner
SKU: MSN2QGX09UL2AR
Price: 26101 INR
Availability: OutOfStock

₹26,101 (Incl. of all taxes)

₹22,119 ₹3,982 GST

MRP ₹53,454 51% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Simple time saving installation - motor and machine remains undisturbed whilst tyre is changed.
Large misalignment capability, 4 angular, up to 6mm parallel and 8mm axial.
Internal load carrying cords are wound in both directions, so there is no problem on reversing drives.
Tyres are available in standard and FRAS (Fire Resistant Anti Static) construction.
ATEX approved.
Simple visual inspection to aid maintenance.
Lubrication free.

Show All Key Features

Product Specifications

Brand	Fenner
A (mm)	314
B (mm)	140
Bore	Spacer Max Bore: 100 mm Fenaflex Max Bore: 100 mm
Bore Size	100 mm
C (mm)	248
D (mm)	178
Distance Between End Shafts	140 mm
E (mm)	312
F (mm)	63
Flange Taper lock bush (TLB) Size	3020
G (mm)	34
H (mm)	20
Items in Pack	1 Piece
J (mm)	17
K (mm)	9
L (mm)	154
M (mm)	29
Maximum Speed	2050 rev/min
Nominal Torque	1330 Nm
Notes	Unboxing Video is Mandatory for any Damage or Leakage Product F flange must be used to fit spacer shaft. For Class 3 and Class 4 Driven Machine, kindly calculate power rating with an average service factor of 2.5
S (mm)	174
Size	F120 SM35 180
Spacer Taper lock bush (TLB) Size	3535
T (mm)	80
Country of origin	India
Manufacturer Details	J.K. Fenner India Limited, 3, Madurai - Melakkal Road, Kochadai, Madurai - 625 016, India. Tel: +91-0452-4283800. Website - https://jkfenner.com
Packer Details	J.K. Fenner India Limited, 3, Madurai - Melakkal Road, Kochadai, Madurai - 625 016, India. Tel: +91-0452-4283800. Website - https://jkfenner.com
Common/Generic Name	Spacer Coupling
Weight	500 g

Show All Specifications

Product Details

The Fenner Fenaflex Spacer Coupling, Taper Lock, F120 SM35 180 offers a robust and reliable solution for power transmission needs. Featuring a 3020 flange taper lock bush and accommodating bores up to 100 mm, it ensures seamless fitment with a nominal torque capacity of 1330 Nm. Designed for easy installation without disturbing the motor or machine, it supports large misalignments with angular, parallel, and axial flexibility. Its fire-resistant and ATEX-approved tyres with bidirectional internal cords allow for use in reversing drives, while lubrication-free operation and simple visual inspections make maintenance hassle-free and efficient.
