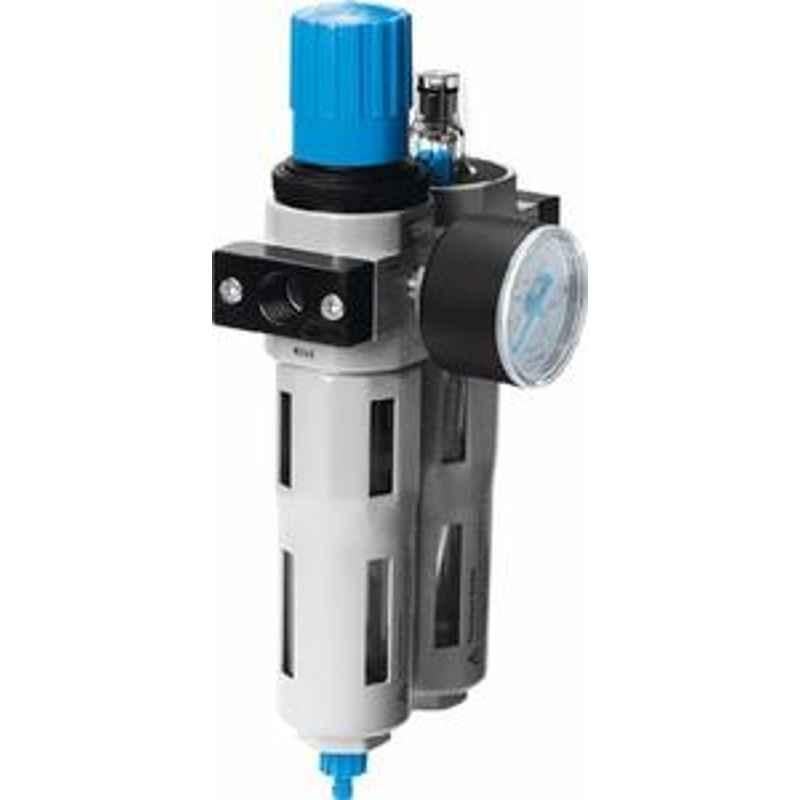

Festo FRC-1-D-MAXI 1 Inch 40µm Filter Service Unit, 159607
₹11,891 (Incl. of all taxes)
₹10,072 ₹1,819 GST
MRP ₹17,074 30% OFF
About This Product
Product Specifications
Brand | |
Additional Details | Actuator Lock: Rotary Knob with Detent Condensate Drain: Manually Rotating Bowl Guard: Metal Bowl Guard Symbol: 00991775 Note on Operating and Pilot Medium: Lubricated Operation Possible (In Which Case Lubricated Operation will Always be Required) Corrosion Resistance Class CRC: 2-Moderate Corrosion Stress |
Ambient Temperature | -10 to 60 deg C |
Conformity | LABS (PWIS): VDMA24364-B1/B2-L |
Connection | Pneumatic (Port 1 & 2): G1 |
Design | Filter Regulator with Pressure Gauge Proportional Standard Mist Lubricator |
Housing Material | Die-Cast Zinc |
Hysteresis | Max. Pressure: 0.04 MPa |
Item Code | FRC-1-D-MAXI |
Material | Bowl: PC |
Mounting position | Vertical: ±5 deg |
Notes | Product once sold will not be returned Box Opening Video will be Required for any Type of Exchange |
Operating Medium | Compressed air to ISO 8573-1:2010 Inert Gases |
Operating Pressure | 0.1-1.6 MPa |
Part Number | 159607 |
Port Size | 1 inch |
Pressure Range | Regulation: 0.5-12 bar |
Series | D |
Standard nominal flow rate | 8500 l/min (Standardised to DIN 1343) |
Temperature | Media: -10 to 60 deg C |
Type | 40 µm filter |
Type of Mounting | In-line Installation with Accessories |
Volume | Max. Condensate: 80 ml |
Weight | 2520 g |
features | Lightweight, Low Profile, Variety of Bowls and Drains, Compact Size |
Country of origin | India |
Manufacturer Details | Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com |
Packer Details | Festo India Private Limited, 130, T Block, MIDC, Bhosari, Pune, Maharashtra, 411026-India, Phone: +91 1800 121 0036, Email: festo_didactic@festo.com |
Common/Generic Name | Filter |
Dimensions LxWxH | 47.3x13x12 cm |
Weight | 1.44 kg |
Show All Specifications
Product Details
Introducing the Festo FRC-1-D-MAXI 1 Inch 40 µm filter, a top-quality product from the renowned brand Festo. This filter is perfect for maintaining clean and efficient pneumatic systems, with a pressure range regulation of 0.5-12 bar. The 40 µm filter is designed to catch even the smallest particles, ensuring optimal performance. With a connection size of G1\
Browse through the extensive list of Filter, Regulator & Lubricators at Moglix. Shop online for other Festo Filter, Regulator & Lubricators. available at Moglix in the lowest price range.
Read More
