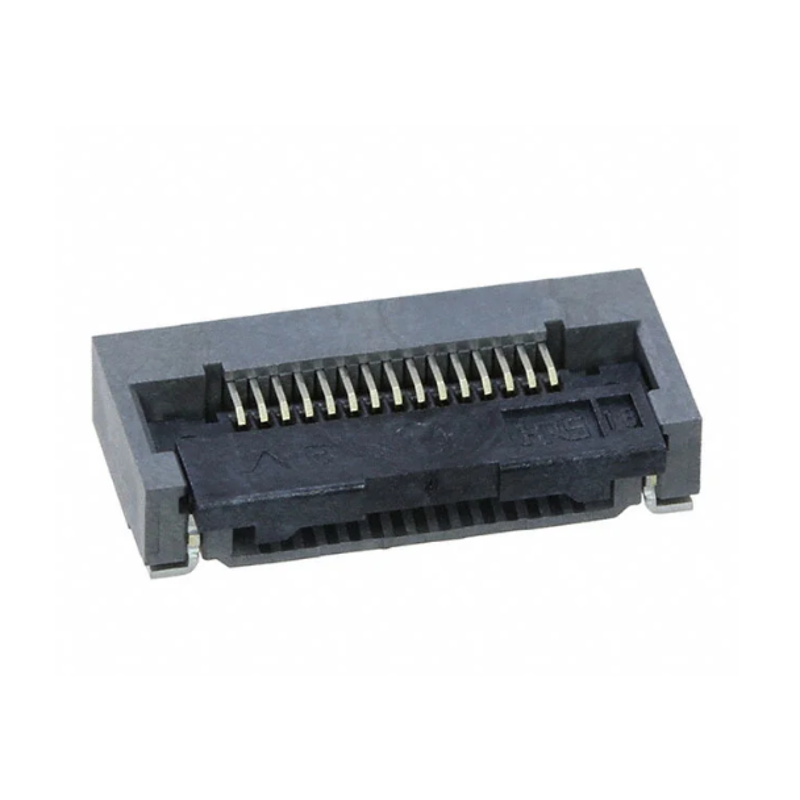

Hirose FFC Bottom 15POS 0.50mm R/A Connector, FH28-15S-0.5SH(10)
₹116 (Incl. of all taxes)
₹98 ₹18 GST
MRP ₹250 53% OFF
About This Product
Key Features
Locking Feature: Rotary Lock.
Cable End Type: Tabbed.
Solder Retention, Zero Insertion Force (ZIF).
Mating Cycles: 20.
Show All Key Features
Product Specifications
Brand | |
Colour | Housing Color: Grey Actuator Color: Black |
Connector Type | Connector/Contact Type: Contacts, Bottom |
Contact Material | Phosphor Bronze |
Contact Plating | Contact Finish: Gold |
Contact Termination Type | Shield Termination: Solder |
Flammability | Material Flammability Rating: UL94 V-0 |
Height | Height Above Board: 2.54 mm |
Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
Item Code | FH28-15S-0.5SH(10) |
Items in Pack | 1 Piece |
Manufacturer | Hirose Electric Co Ltd |
Material | Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free |
Mounting type | Surface Mount, Right Angle |
Number of Pin | 15 |
Operating Temperature | -40 to 105 deg C |
Part Number | FH28-15S-0.5SH(10) |
Pitch | 0.50 mm |
Series | FH28 |
Socket Type | FFC, FPC |
Thickness | FFC, FCB Thickness: 0.30 mm |
Voltage | 50 V |
Country of origin | Japan |
Manufacturer Details | Hirose Electric USA, Inc., Hirose Korea Co., Ltd. Japan |
Packer Details | Hirose Electric USA, Inc., Hirose Korea Co., Ltd. Japan |
Importer Details | D Block, 11th Floor, IBC Knowledge Park, 4/1, Bannerghatta Main Rd, Bhavani Nagar, Suddagunte Palya, Bangalore, Karnataka 560029, India. |
Common/Generic Name | Connector |
Dimensions LxWxH | 8x5x7 cm |
Weight | 118 g |
Show All Specifications
Product Details
Hirose FFC Bottom 15POS 0.50mm R/A Connector, FH28-15S-0.5SH(10) is a premium quality product from Hirose . Moglix is a well-known ecommerce platform for qualitative range of Connectors & Jumpers. All Hirose FFC Bottom 15POS 0.50mm R/A Connector, FH28-15S-0.5SH(10) are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Hirose FFC Bottom 15POS 0.50mm R/A Connector, FH28-15S-0.5SH(10), are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Hirose products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Hirose Connectors & Jumpers .
