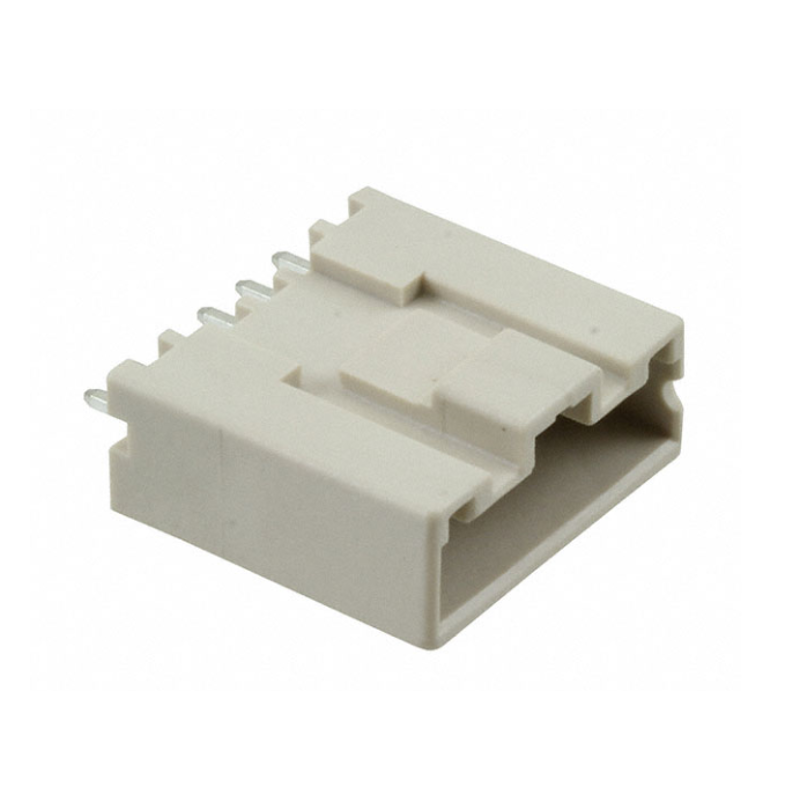

Hirose VERT 6POS 2.5mm Connector Header, DF1EG-6P-2.5DSA(35)

Name: Hirose VERT 6POS 2.5mm Connector Header, DF1EG-6P-2.5DSA(35)
Brand: Hirose
SKU: MSNPKEPQ3EQL9G
Price: 116 INR
Availability: OutOfStock

₹116 (Incl. of all taxes)

₹98 ₹18 GST

MRP ₹250 53% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Mating: 2.50 mm.
Shrouding: Shrouded - 4 Wall.

Product Specifications

Brand	Hirose
Colour	Insulation Color: Natural
Connector Type	Header
Contact Form	Male Pin
Contact Plating	Contact Finish - Post: Tin
Current Rating	3 Amp
Fastening Type	Latch Holder
Flammability	Material Flammability Rating: UL94 V-0
Height	Insulation Height: 16.30 mm Mated Stacking Heights: 14.3-19.8 mm
Item Code	DF1EG-6P-2.5DSA(35)
Items in Pack	1 Piece
Length	Contact Length - Mating: 4.50 mm Contact Length - Post: 3 mm
Manufacturer	Hirose Electric Co Ltd
Material	Contact Material: Brass Insulation Material: Polyamide (PA), Nylon
Mounting type	Through Hole
Number of Pin	6
Number of Row	1
Part Number	DF1EG-6P-2.5DSA(35)
Pitch	0.098 inch
Series	DF1E
Shape	Contact Shape: Square
Style	Board to Cable & Wire
Termination	Solder
Country of origin	Japan
Manufacturer Details	Hirose Electric USA, Inc., Hirose Korea Co., Ltd. Japan
Packer Details	Hirose Electric USA, Inc., Hirose Korea Co., Ltd. Japan
Importer Details	D Block, 11th Floor, IBC Knowledge Park, 4/1, Bannerghatta Main Rd, Bhavani Nagar, Suddagunte Palya, Bangalore, Karnataka 560029, India.
Common/Generic Name	Connector Header
Dimensions LxWxH	8x5x7 cm
Weight	118 g

Show All Specifications

Product Details

Hirose VERT 6POS 2.5mm Connector Header, DF1EG-6P-2.5DSA(35) is a premium quality product from Hirose . Moglix is a well-known ecommerce platform for qualitative range of Connectors & Jumpers. All Hirose VERT 6POS 2.5mm Connector Header, DF1EG-6P-2.5DSA(35) are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Hirose VERT 6POS 2.5mm Connector Header, DF1EG-6P-2.5DSA(35), are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Hirose products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Hirose Connectors & Jumpers .
