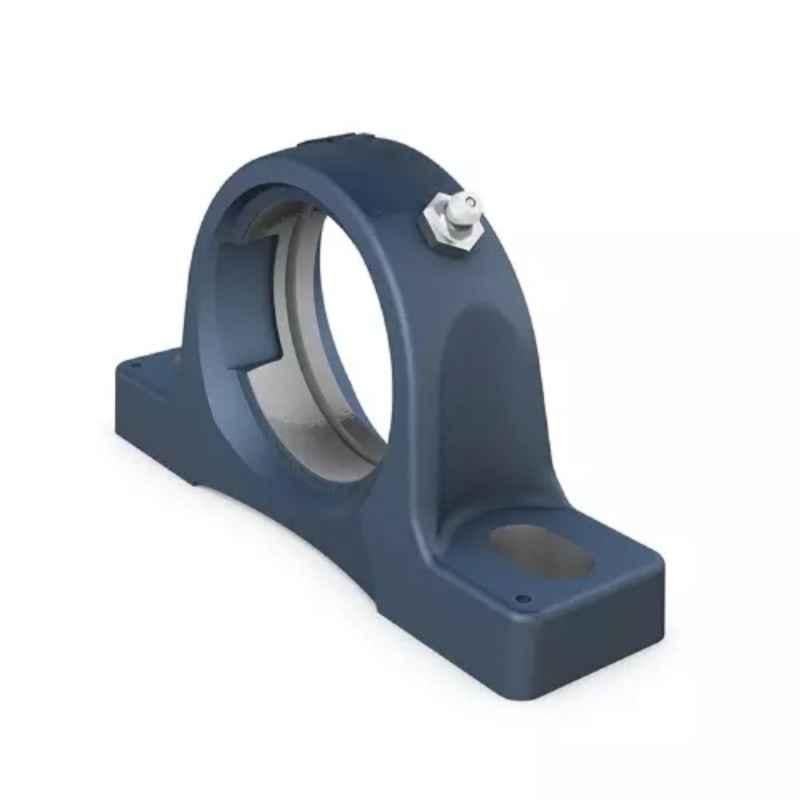

Imported 100x115x95mm Cast Iron Imported Pillow Block Ball Bearing Unit, SYJ100TF

Name: Imported 100x115x95mm Cast Iron Imported Pillow Block Ball Bearing Unit, SYJ100TF
Brand: Imported
SKU: MSN39YRD3DD25Q
Price: 19693 INR
Availability: OutOfStock

₹19,693 (Incl. of all taxes)

₹16,688 ₹3,005 GST

MRP ₹42,574 53% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Additional Details	Sub Type: Imported Tightening Torque: 28.5 Nm Centre Distance of Mounting Holes: 308 mm
Basic Static Load	93 kN
Dynamic Load Rating	124 kN
Fatigue Load Limit	3.35 kN
Inner Diameter	100 mm
Item Code	SYJ100TF
Limiting Speed	1900 rpm
Material	Cast Iron
Notes	Images for Reference Purpose Only
Outer Diameter	115 mm
Standard	JIS
Thread Size	M12x1.5
Weight	17.9 kg
Width	95 mm
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB ROAD, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 100x115x95mm Cast Iron Pillow Block Ball Bearing Unit, SYJ100TF, a top-quality product in the Pillow Block Units category. Manufactured by the renowned brand Imported, this bearing unit adheres to the Standard JIS, ensuring reliability and durability. Weighing just 17.9 kg, it combines solid construction with a compact design. With a Basic Static Load capacity of 93 kN, it guarantees exceptional performance under heavy loads. Featuring a convenient Thread Size of M12x1.5, this unit is designed for easy installation. Please note that the images provided are for reference purposes only. With a Limiting Speed of 1900 rpm, this bearing unit promises efficient operation. Additional details include its Sub Type: Imported. Experience the unmatched quality and precision of the Imported 100x115x95mm Cast Iron Pillow Block Ball Bearing Unit, SYJ100TF.
