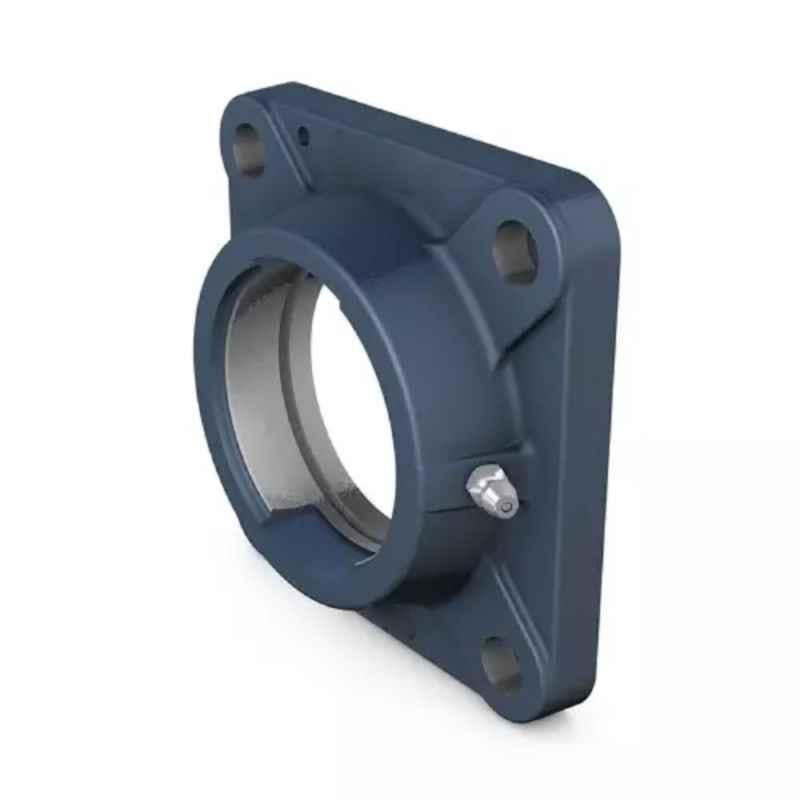

Imported 12x24x27mm Cast Iron Imported Square Flange Ball Bearing Unit, FY12TF

Name: Imported 12x24x27mm Cast Iron Imported Square Flange Ball Bearing Unit, FY12TF
Brand: Imported
SKU: MSN4K6ZXWQZ8KQ
Price: 1574 INR
Availability: OutOfStock

₹1,574 (Incl. of all taxes)

₹1,333 ₹241 GST

MRP ₹3,569 55% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Additional Details	Sub Type: Imported Fatigue Load Limit: 0.2 kN Tightening Torque: 4 Nm Hexagonal Key Size: 3 mm Diameter for Attachment Bolt: 10 mm
Basic Static Load	4.75 kN
Diameter	Inner: 12 mm Outer: 24 mm
Dynamic Load	9.56 kN
Item Code	FY12TF
Limiting Speed	9500 rpm
Material	Cast Iron
Notes	Images for Reference Purpose Only
Standard	ISO
Thread Size	M6x0.75
Weight	370 g
Width	27 mm
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB ROAD, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

The Imported 12x24x27mm Cast Iron Imported Square Flange Ball Bearing Unit, FY12TF is a premium quality product in the Bearing Block category. Manufactured by the esteemed brand, Imported, this ball bearing unit ensures high performance and durability. With a dynamic load capacity of 9.56 kN, it can withstand heavy loads with ease. It adheres to the standard ISO, ensuring reliability and consistency. Weighing only 370 g, it is lightweight yet sturdy. The basic static load capacity of 4.75 kN ensures stability in various applications. The M6x0.75 thread size allows for easy installation. Please note that the product images are for reference purposes only. With a limiting speed of 9500 rpm, it offers smooth and efficient operation.
