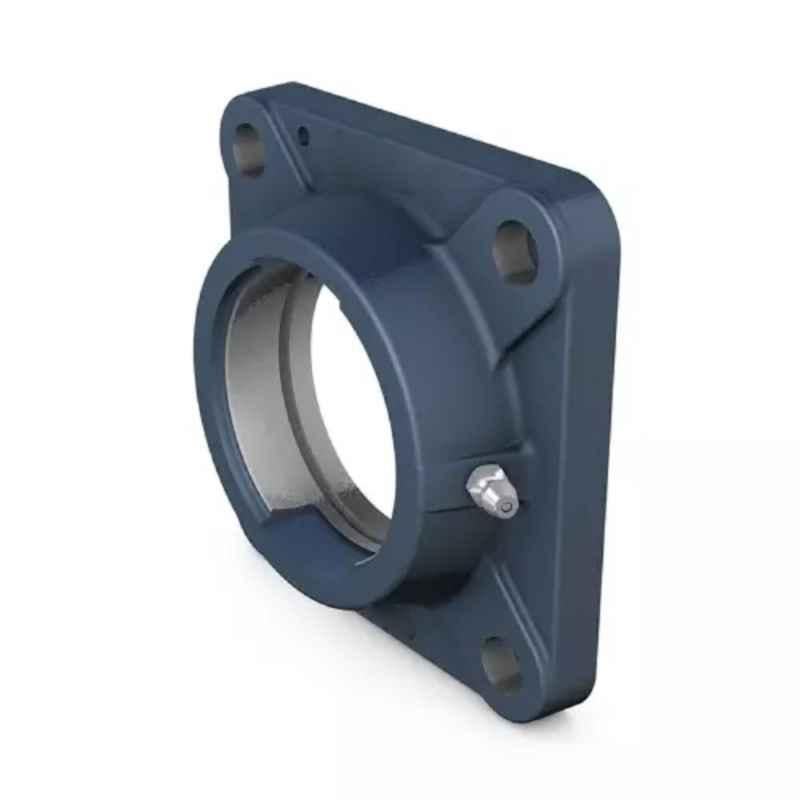

Imported 32x46x43mm Cast Iron Imported Square Flange Ball Bearing Unit, FY1.1/4TF

Name: Imported 32x46x43mm Cast Iron Imported Square Flange Ball Bearing Unit, FY1.1/4TF
Brand: Imported
SKU: MSNO5WNVGP1R51
Price: 2013 INR
Availability: OutOfStock

₹2,013 (Incl. of all taxes)

₹1,705 + ₹308 GST

MRP ₹4,061 50% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Additional Details	Sub Type: Imported Fatigue Load Limit: 0.655 kN Tightening Torque: 6.5 Nm Hexagonal Key Size: 3.969 mm Diameter for Attachment Bolt: 12 mm
Basic Static Load	15.3 kN
Diameter	Inner: 32 mm Outer: 46 mm
Dynamic Load	25.5 kN
Item Code	FY1.1/4TF
Limiting Speed	5300 rpm
Material	Cast Iron
Notes	Images for Reference Purpose Only
Standard	ISO
Thread Size	5/16-24 UNF
Weight	1.4 kg
Width	43 mm
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB ROAD, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the imported 32x46x43mm Cast Iron Square Flange Ball Bearing Unit, FY1.1/4TF, designed for superior performance in various industrial applications. This high-quality bearing block from the renowned brand Imported ensures exceptional durability and efficiency. With a dynamic load capacity of 25.5 kN and a basic static load capacity of 15.3 kN, this bearing unit offers maximum support and smooth operation. Manufactured following the ISO standard, you can rely on its quality and reliability. Weighing just 1.4 kg, it is lightweight yet robust. The thread size of 5/16-24 UNF guarantees a secure fit. Please note that the product images are for reference purposes only. With a limiting speed of 5300 rpm, this imported square flange ball bearing unit is a perfect choice for demanding industrial applications.
