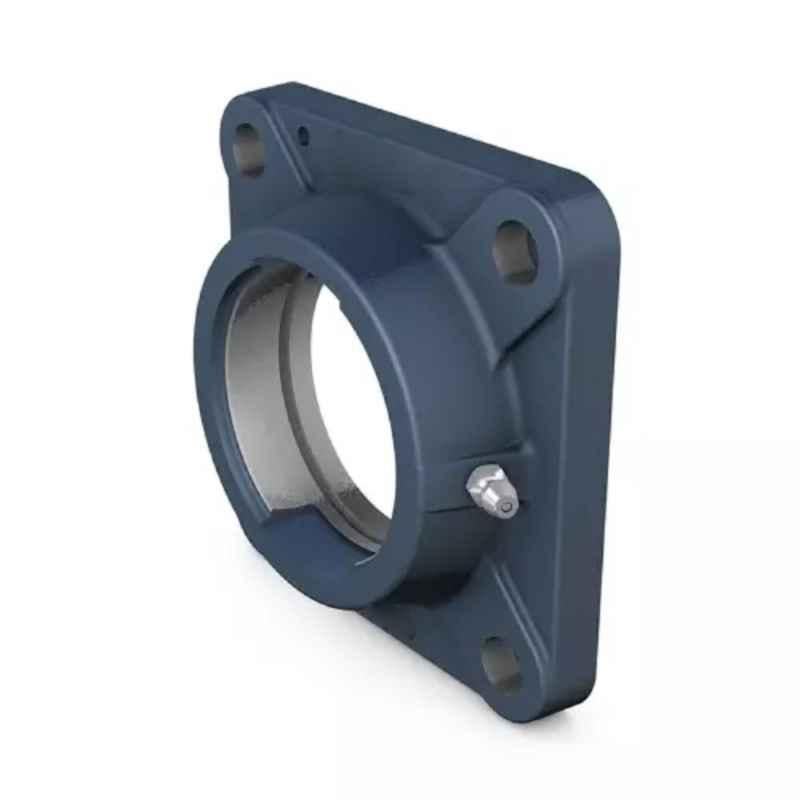

Imported 49x63x52mm Cast Iron Imported Square Flange Ball Bearing Unit, FY1.15/16TF

Name: Imported 49x63x52mm Cast Iron Imported Square Flange Ball Bearing Unit, FY1.15/16TF
Brand: Imported
SKU: MSNQ94P0MYLEK0
Price: 2626 INR
Availability: OutOfStock

₹2,626 (Incl. of all taxes)

₹2,225 + ₹401 GST

MRP ₹6,213 57% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Additional Details	Sub Type: Imported Fatigue Load Limit: 0.98 kN Tightening Torque: 16.5 Nm Hexagonal Key Size: 4.763 mm Diameter for Attachment Bolt: 16 mm
Basic Static Load	23.2 kN
Diameter	Inner: 49 mm Outer: 63 mm
Dynamic Load	35.1 kN
Item Code	FY1.15/16TF
Limiting Speed	4000 rpm
Material	Cast Iron
Notes	Images for Reference Purpose Only
Standard	ISO
Thread Size	3/8-24 UNF
Weight	2.3 kg
Width	52 mm
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB ROAD, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 49x63x52mm Cast Iron Square Flange Ball Bearing Unit, FY1.15/16TF, a remarkable addition to the Bearing Block category. Crafted with precision and engineered to withstand heavy-duty applications, this high-quality product guarantees reliable performance every time. With a dynamic load capacity of 35.1 kN, it effortlessly supports substantial loads, making it ideal for industrial settings. Compliant with ISO standards, this bearing unit ensures optimal functionality and durability. Weighing just 2.3 kg, it is lightweight and easy to install. Boasting a basic static load capacity of 23.2 kN, it guarantees stability and smooth operation. The 3/8-24 UNF thread size makes it compatible with various equipment. Please note that the images provided are for reference purposes only. With a limiting speed of 4000 rpm, this ball bearing unit offers efficient performance. Choose the Imported brand for exceptional quality and reliability in the world of bearings.
