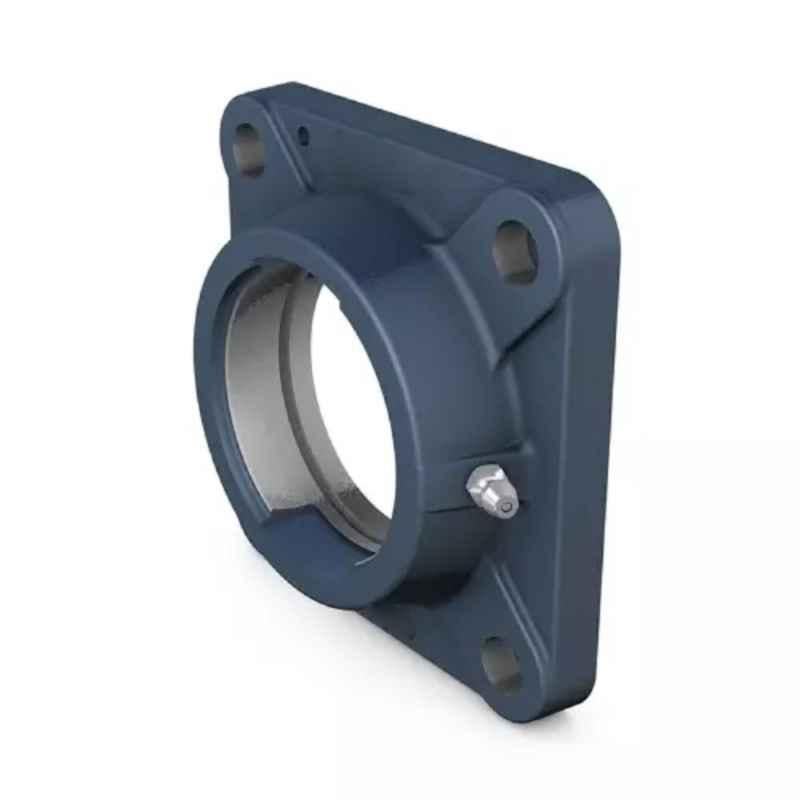

Imported 55x69x56mm Cast Iron Imported Square Flange Ball Bearing Unit, FY55TF

Name: Imported 55x69x56mm Cast Iron Imported Square Flange Ball Bearing Unit, FY55TF
Brand: Imported
SKU: MSNV5OOXMXRV56
Price: 3721 INR
Availability: OutOfStock

₹3,721 (Incl. of all taxes)

₹3,153 + ₹568 GST

MRP ₹7,835 52% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Additional Details	Sub Type: Imported Fatigue Load Limit: 1.25 kN Tightening Torque: 16.5 Nm Hexagonal Key Size: 5 mm Diameter for Attachment Bolt: 16 mm
Basic Static Load	29 kN
Diameter	Inner: 55 mm Outer: 69 mm
Dynamic Load	43.6 kN
Item Code	FY55TF
Limiting Speed	3600 rpm
Material	Cast Iron
Notes	Images for Reference Purpose Only
Standard	ISO
Thread Size	M10x1
Weight	3.2 kg
Width	56 mm
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB ROAD, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 55x69x56mm Cast Iron Square Flange Ball Bearing Unit, FY55TF. This high-quality bearing block, from the trusted brand Imported, is designed to provide exceptional performance and durability. With a dynamic load capacity of 43.6 kN and a basic static load capacity of 29 kN, this bearing unit is built to withstand heavy-duty applications. It adheres to the ISO standards, ensuring reliability and precision. Weighing only 3.2 kg, it is compact and lightweight, making installation a breeze. The M10x1 thread size allows for easy attachment, and the limiting speed of 3600 rpm ensures smooth operation. Please note that the images provided are for reference purposes only. Upgrade your machinery with this exceptional Imported ball bearing unit for superior performance and longevity.
