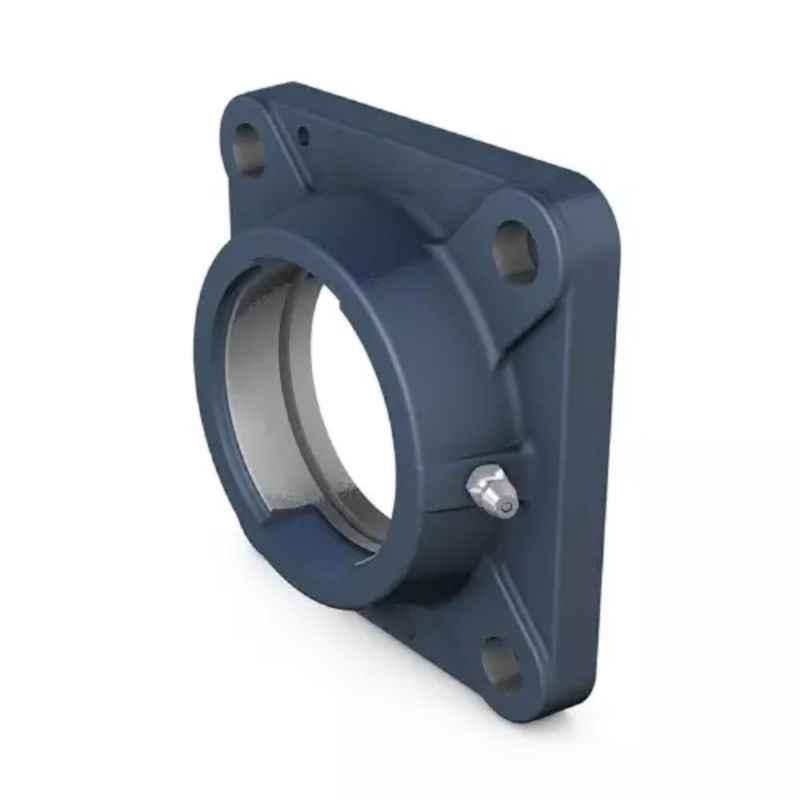

Imported 57x76x65mm Cast Iron Imported Square Flange Ball Bearing Unit, FY2.1/4TF

Name: Imported 57x76x65mm Cast Iron Imported Square Flange Ball Bearing Unit, FY2.1/4TF
Brand: Imported
SKU: MSNM9XY4EVGDKJ
Price: 4944 INR
Availability: OutOfStock

₹4,944 (Incl. of all taxes)

₹4,189 + ₹755 GST

MRP ₹10,409 52% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Additional Details	Sub Type: Imported Fatigue Load Limit: 1.53 kN Tightening Torque: 16.5 Nm Hexagonal Key Size: 4.763 mm Diameter for Attachment Bolt: 16 mm
Basic Static Load	36 kN
Diameter	Inner: 57 mm Outer: 76 mm
Dynamic Load	52.7 kN
Item Code	FY2.1/4TF
Limiting Speed	3400 rpm
Material	Cast Iron
Notes	Images for Reference Purpose Only
Standard	ISO
Thread Size	3/8-24 UNF
Weight	4.05 kg
Width	65 mm
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB ROAD, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 57x76x65mm Cast Iron Square Flange Ball Bearing Unit, FY2.1/4TF, the perfect addition to our diverse Bearing Block category. Manufactured by the reputable brand 'Imported', this ball bearing unit boasts a commendable dynamic load capacity of 52.7 kN, ensuring reliable performance under heavy-duty circumstances. With a standard ISO certification, you can be confident in its quality and compatibility with industry standards. Weighing only 4.05 kg, this unit offers a compact design without compromising on strength. The basic static load of 36 kN further enhances its reliability. Threaded with a 3/8-24 UNF size, it allows for effortless installation. It is important to note that the product images are for reference purposes only. Rest assured, this bearing unit offers a limiting speed of 3400 rpm, providing optimal efficiency.
