Imported 6308 40x90x23mm Deep Groove Automotive Ball Bearing (Pack of 5)

₹2,346 (Incl. of all taxes)

₹1,988 ₹358 GST

MRP ₹4,815 51% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand
Additional Details
Fillet Radius: min. 1.5 mm
Radius of Shaft/Housing Fillet: max. 1.5 mm
Recess Diameter: 77.7 mm
Housing Diameter: max. 81 mm
Fatigue Load Limit: 1.02 kN
Material: Steel
Shaft Diameter: min. 49 mm
Shoulder Diameter: 56.11 mm
Applications
Multiple Applications & Positions
Bearing Number
6308
Bore Diameter
40 mm
Cage type
Standard
Dynamic Load Rating
42.3 kN
Enclosure
No Seal
Limiting Speed
11000 rpm
Notes

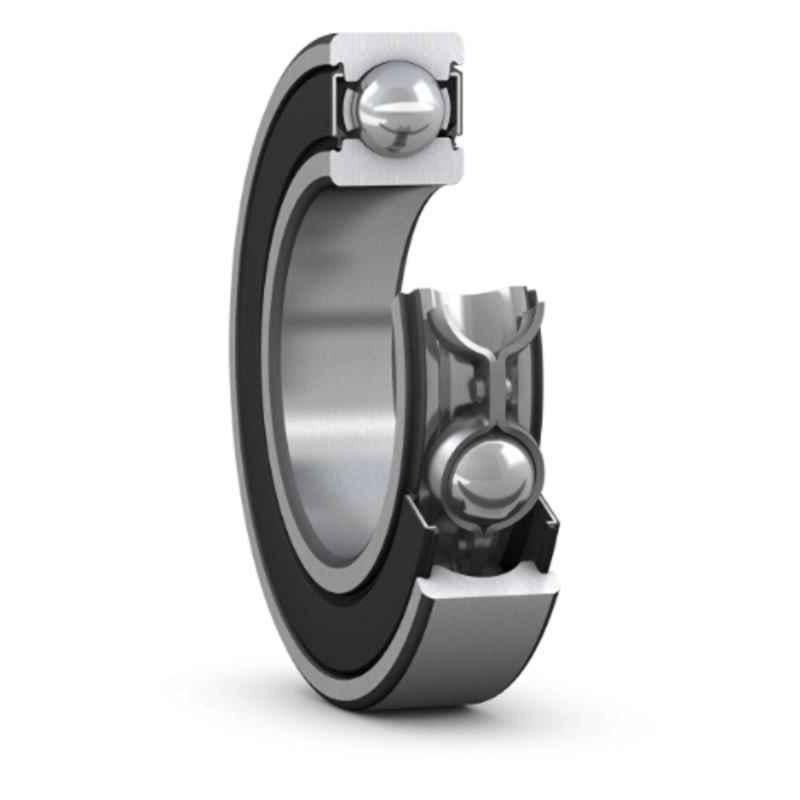

Images are for Reference Purpose Only
Outer Diameter
90 mm
Reference speed
17000 rpm
Segment
Multiple Segments
Static Load Rating
24 kN
Type of Ball Bearing
Deep Groove
Vehicle Make
Multiple Manufacturer
Vehicle Model
Multiple Vehicle Model & Varients
Width
23 mm
Country of origin
China
Manufacturer Details
No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details
10, B.R.B.B. Road, Canning Street , Kolkata, West Bengal-700001, India
Importer Details
10, B.R.B.B. Road, Canning Street , Kolkata, West Bengal-700001, India
Common/Generic Name
Ball Bearing
Dimensions LxWxH
10x10x10 cm
Weight
0.2 kg
Show All Specifications

Product Details

Introducing the Imported 6308 40x90x23mm Deep Groove Automotive Ball Bearing, a must-have product for any automotive enthusiast. This pack of five premium quality ball bearings is specifically designed for automotive applications.

With its deep groove design, this ball bearing ensures smooth and efficient operation, making it suitable for multiple applications and positions within the automotive industry.

Engineered to deliver exceptional performance, this ball bearing features a static load rating of 24 kN, guaranteeing its durability and reliability. Its limiting speed of 11000 rpm further enhances its high-speed performance, allowing your automotive machinery to operate at its full potential.

Crafted by the renowned brand, Imported, this automotive ball bearing is synonymous with quality and precision. Each bearing is constructed with meticulous attention to detail, ensuring optimal strength and performance.

Please note that the images provided are for reference purposes only, allowing you to visualize the product. The actual product may vary slightly in appearance.

With a fillet radius of minimum 1.5 mm and a width of 23 mm, this ball bearing offers enhanced stability and support. It is the perfect choice for any automotive application requiring a deep groove ball bearing.

Upgrade your automotive machinery with the Imported 6308 40x90x23mm Deep Groove Automotive Ball Bearing today. Experience the difference in performance and reliability that only Imported can offer.

Browse through the extensive list of Automotive Ball Bearings at Moglix. Shop online for other Imported Automotive Ball Bearings. available at Moglix in the lowest price range.
