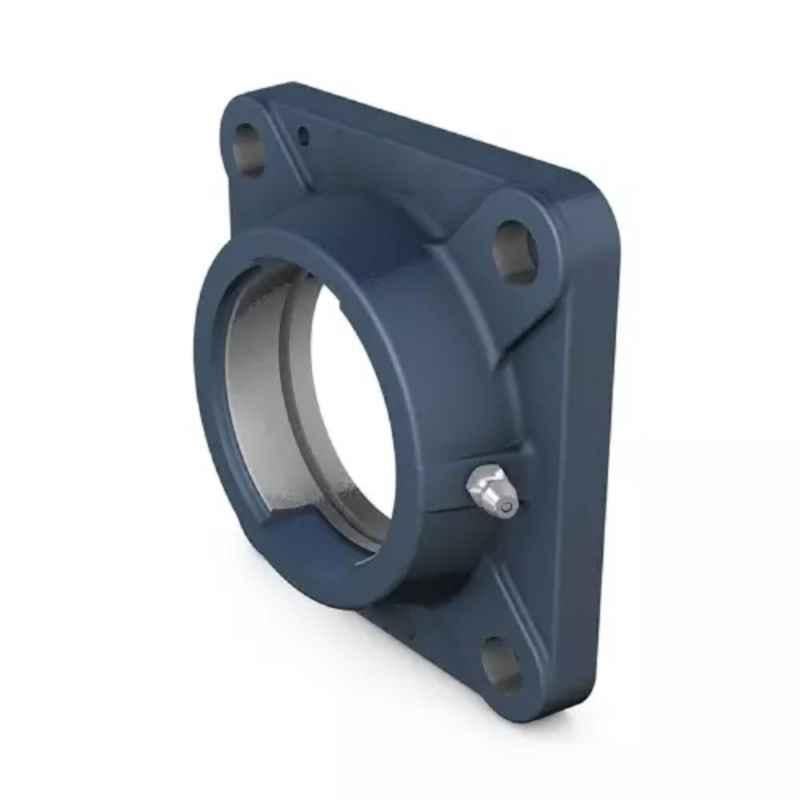

Imported 65x83x68mm Cast Iron Imported Square Flange Ball Bearing Unit, FYJ65TF

Name: Imported 65x83x68mm Cast Iron Imported Square Flange Ball Bearing Unit, FYJ65TF
Brand: Imported
SKU: MSNV5OOXEOWV56
Price: 5963 INR
Availability: OutOfStock

₹5,963 (Incl. of all taxes)

₹5,053 + ₹910 GST

MRP ₹14,108 57% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Additional Details	Sub Type: Imported Fatigue Load Limit: 1.7 kN Tightening Torque: 16.5 Nm Hexagonal Key Size: 5 mm Diameter for Attachment Bolt: 16 mm
Basic Static Load	40 kN
Diameter	Inner: 65 mm Outer: 83 mm
Dynamic Load	57.2 kN
Item Code	FYJ65TF
Limiting Speed	3000 rpm
Material	Cast Iron
Notes	Images for Reference Purpose Only
Standard	JIS
Thread Size	M10x1
Weight	5.25 kg
Width	68 mm
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB ROAD, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

The Imported 65x83x68mm Cast Iron Square Flange Ball Bearing Unit, FYJ65TF, is a high-quality bearing block designed to efficiently support heavy load applications. With a dynamic load capacity of 57.2 kN, this bearing unit excels in providing reliable support and maximizing performance. Made with standard JIS specifications, it ensures durability and long-lasting service. Weighing 5.25 kg, it offers sturdy construction without compromising ease of installation. The M10x1 threaded size enables easy attachment to machinery and equipment. Please note that images are for reference purposes only. With a limiting speed of 3000 rpm, this bearing unit delivers optimal rotational speed for smooth operation. Trust the Imported brand for exceptional quality and performance when it comes to bearing blocks.
