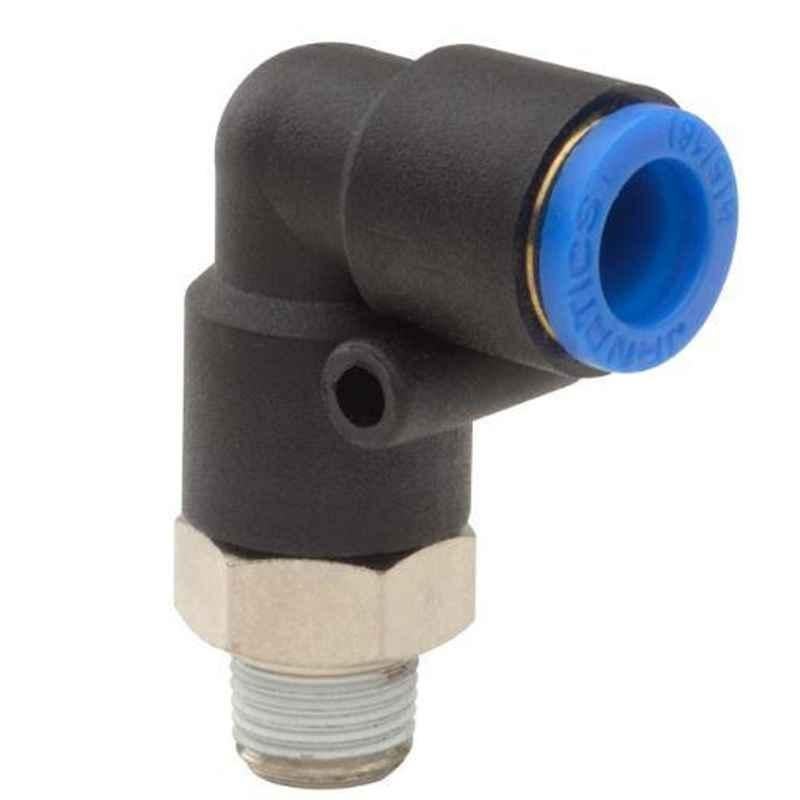

Janatics 10mm 1/8 inch BSP Male Elbow, WP2211050, Length: 26 mm

Name: Janatics 10mm 1/8 inch BSP Male Elbow, WP2211050, Length: 26 mm
Brand: Janatics
SKU: MSN2QV0W5RDYZL
Price: 36400 INR
Availability: OutOfStock

MRP ₹182 (Incl. of all taxes)

₹154 + ₹28 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Attractive Design.
Compact Size.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Bubble Tight Sealing of Tubes.
Suitable for Both Nylon & Pu Tubing.
Easy & Quick Push in Connection of Tube/easy Removal of Tube by Simple Pressing of Collet Cap.
New Design Stainless Steel Collet.
Teflon Pre Coated Male Taper Threads.
maintenance Free & Long Life.
The Fitment & Function of Tubes Are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5-60 deg C
Item Code	WP2211050
Length	26 mm
Material	Polyurethane
Medium	Air
Notes	Product Once Sold will Not be Returned
Operating Pressure	10 bar
Outer Diameter	10 mm
Series	WP2
Thread Size	1/8 inch
Thread Type	BSP
Tolerance	Less or More 0.1 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Male Elbow
Weight	754 g

Show All Specifications

Product Details

Introducing the Janatics 1/8 inch 10mm BSP Male Elbow, a versatile and reliable elbow fitting designed to meet all your pneumatic system needs. This product, proudly brought to you by Janatics, a trusted name in the industry, guarantees premium quality and performance.

The Elbow Fittings category is where you'll find this innovative product. As the name suggests, this fitting is specifically designed to connect tubes with an outer diameter of 10mm, ensuring seamless and secure connections. With a thread size of 1/8 inch, it offers compatibility with various pneumatic systems.

It's essential to note that once you purchase this product, it cannot be returned. However, with Janatics' exceptional design standards, you can rest assured that you're investing in a durable and long-lasting solution. With a maximum operating pressure of 10 bar, this elbow fitting performs optimally, even under challenging conditions.

Ideal for use with air mediums, this fitting can effortlessly handle a wide temperature range, from 5 to 60 degrees Celsius. Whether you're using it in industrial environments or other applications, you can count on the Janatics 1/8 inch 10mm BSP Male Elbow to withstand demanding conditions while maintaining optimal functionality.

In conclusion, the Janatics 1/8 inch 10mm BSP Male Elbow is the go-to choice for anyone seeking a high-quality elbow fitting. With its precise specifications, exceptional design standard, and ability to handle challenging operating conditions, this product is a must-have for any pneumatic system. Trust Janatics to provide you with a reliable fitting solution that ensures seamless performance.
