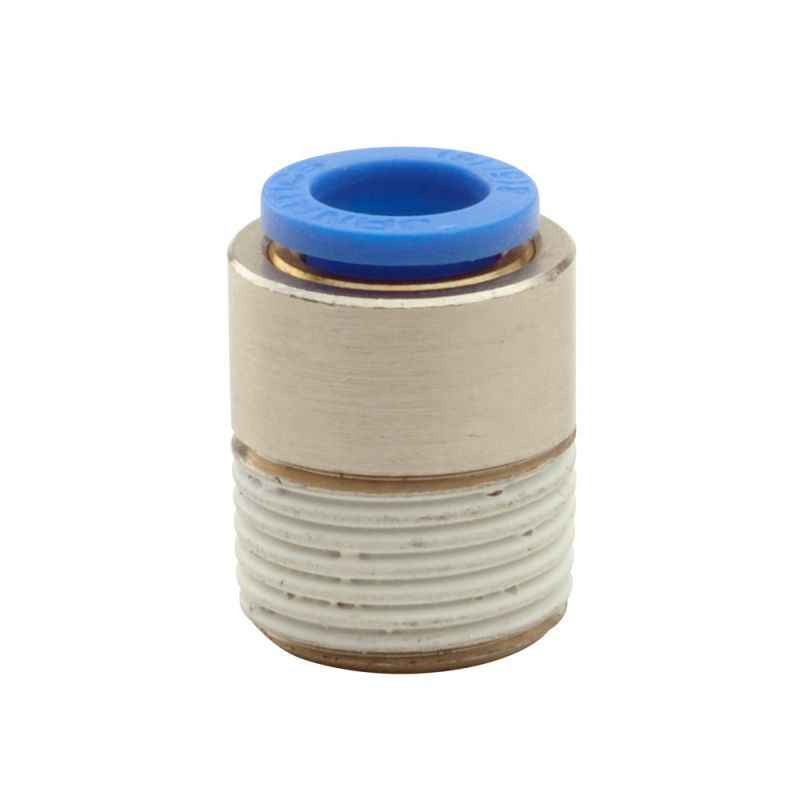

Janatics 10mm 1/4 inch BSP Male Connector, WP2131051

Name: Janatics 10mm 1/4 inch BSP Male Connector, WP2131051
Brand: Janatics
SKU: MSNM9XYX601RKJ
Price: 31200 INR
Availability: OutOfStock

MRP ₹156 (Incl. of all taxes)

₹132 ₹24 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Attractive Design.
Compact Size.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Bubble Tight Sealing of Tubes.
Suitable for Both Nylon & Pu Tubing.
easy & Quick Push in Connection of Tube/Easy Removal of Tube by Simple Pressing of Collet Cap.
New Design Stainless Steel Collet.
Teflon Pre Coated Male Taper Threads.
Maintenance Free & Long Life.
The Fitment & Function of Tubes Are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5 to 60 deg C
Diameter	10 mm
Item Code	WP2131051
Length	29.5 mm
Medium	Air
Notes	Product Once Sold will not be Returned
Operating Pressure	10 bar
Overall Diameter	18 mm
Series	WP2
Thread Size	1/4 inch
Thread Type	BSP
Tolerance	Less or More 0.1 mm
Wrench Size	6 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Male Connector
Dimensions LxWxH	5.1x3.6x1.9 cm
Weight	754 g

Show All Specifications

Product Details

Introducing the Janatics 10mm 1/4 inch BSP Male Connector, WP2131051, a top-quality connector designed for maximum efficiency and reliability. The 1/4 inch thread size ensures a secure fit, while the 10mm diameter and 10 bar operating pressure make it ideal for a wide range of applications. Suitable for use with air as a medium, this connector offers precise performance with a tolerance of less or more 0.1 mm. With an ambient temperature range of 5 to 60 degrees Celsius, the Janatics connector is built to withstand various conditions. Please note, once sold, this product cannot be returned. Trust Janatics for all your connector needs.
