Janatics 10mm Y Type Male Branch, WP2411051, Length: 59.5 mm

Name: Janatics 10mm Y Type Male Branch, WP2411051, Length: 59.5 mm
Brand: Janatics
SKU: MSN8KLPWJZ275V
Price: 38000 INR
Availability: OutOfStock

MRP ₹190 (Incl. of all taxes)

₹161 ₹29 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Compact Size.
Attractive Design.
Maintenance Free & Long Life.
Bubble Tight Sealing of Tubes.
New Design Stainless Steel Collet.
Suitable for Both Nylon & PU Tubing.
Teflon Pre Coated Male Taper Threads.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Easy & Quick Push in Connection of Tube/Easy Removal of Tube by Simple Pressing of Collet Cap.
The Fitment & Function of Tubes are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5-60 deg C
Item Code	WP2411051
Length	59.5 mm
Medium	Air
Notes	Product Once Sold will not be Returned
Operating Pressure	10 bar
Outer Diameter	10 mm
Overall Diameter	18.5 mm
Series	WP2
Thread Size	1/4 inch
Tolerance	Less or More 0.1 mm
Wrench Size	17 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Y Type PU Male Branch
Dimensions LxWxH	7.3x3.8x4.2 cm
Weight	754 g

Show All Specifications

Product Details

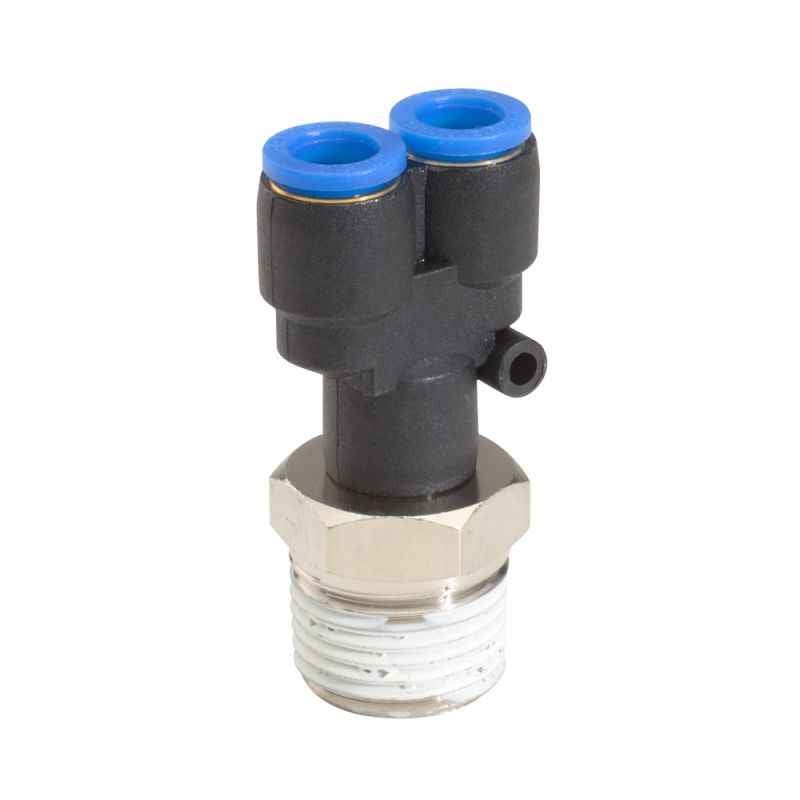

Introducing the Janatics 10mm Y Type Male Branch fitting, part number WP2411051. This Y type fitting is perfect for splitting airflow in pneumatic systems. With a thread size of 1/4 inch, this fitting is designed for optimal performance at an operating pressure of 10 bar. The overall length of this fitting is 59.5 mm, and it has a tolerance of less or more than 0.1 mm. The ambient temperature range for this fitting is 5-60 deg C, and it has an overall diameter of 18.5 mm. Please note that once this product is sold, it cannot be returned. Upgrade your pneumatic system with Janatics Y Type fittings today!
