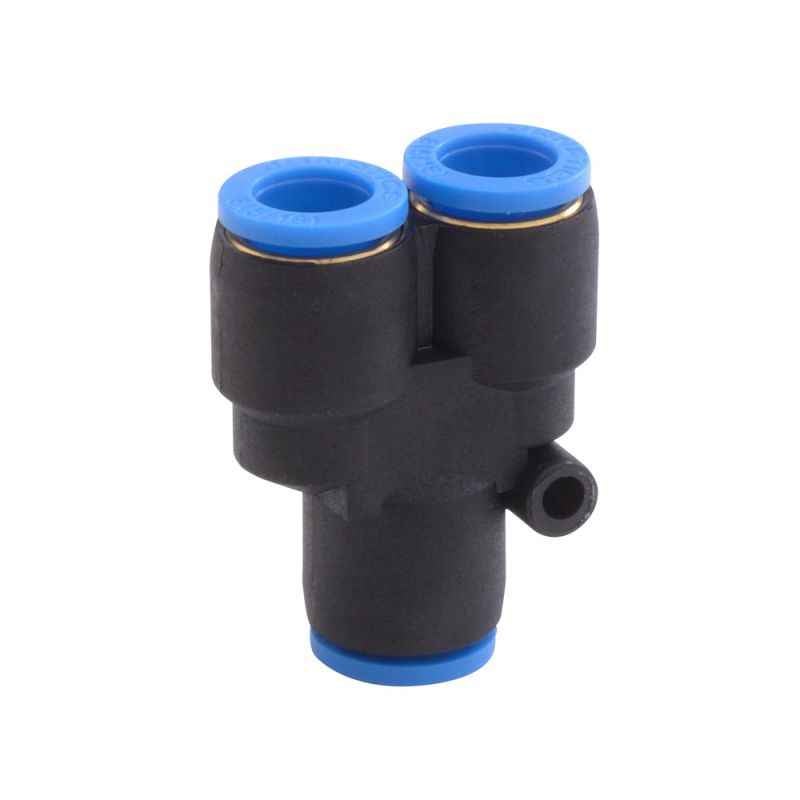

Janatics 12mm Y Type Union, WP2401212, Length: 47 mm

Name: Janatics 12mm Y Type Union, WP2401212, Length: 47 mm
Brand: Janatics
SKU: MSNZ526MLWXE9X
Price: 406 INR
Availability: OutOfStock

MRP ₹203 (Incl. of all taxes)

₹172 ₹31 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Compact Size.
Attractive Design.
Maintenance Free & Long Life.
Bubble Tight Sealing of Tubes.
New Design Stainless Steel Collet.
Suitable for Both Nylon & PU Tubing.
Teflon Pre Coated Male Taper Threads.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Easy & Quick Push in Connection of Tube/Easy Removal of Tube by Simple Pressing of Collet Cap.
The Fitment & Function of Tubes are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5-60 deg C
Item Code	WP2401212
Length	47 mm
Medium	Air
Notes	Product Once Sold will not be Returned
Operating Pressure	10 bar
Outer Diameter	12 mm
Overall Diameter	21 mm
Series	WP2
Tolerance	Less or More 0.1 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Union
Dimensions LxWxH	7.3x3.8x4.2 cm
Weight	754 g

Show All Specifications

Product Details

The Janatics 12mm Y Type Union is an essential component in the Union Fittings category, specifically designed and manufactured by the reliable brand, Janatics. With a compact design and a length of 47 mm, this union is perfect for various applications. However, please note that once this product is sold, returns are not accepted. With an operating pressure of 10 bar, it offers exceptional performance and reliability. The union is suitable for use with air as the medium, and it has a tolerance level of less or more than 0.1 mm. With an ambient temperature range of 5-60 Degree C, it is adaptable to various environments. The overall diameter of this union is 21 mm, making it easy to install and connect with other fittings. Rest assured, the Janatics 12mm Y Type Union is a high-quality product that meets industry standards and is backed by the trusted Janatics brand.
