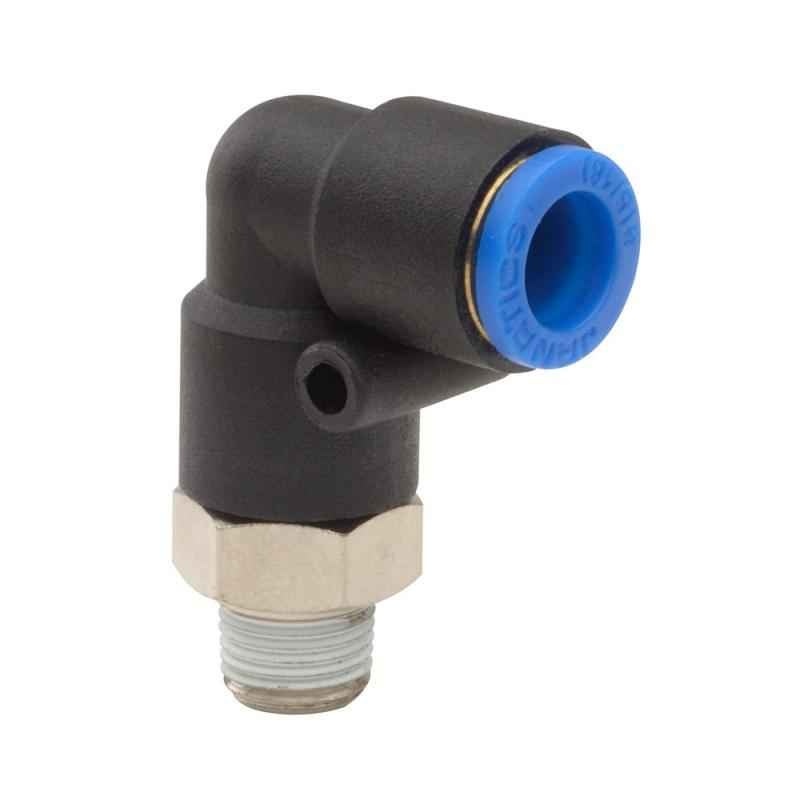

Janatics 14mm 1/2 inch BSP Male Elbow, WP2211453, Length: 29 mm

Name: Janatics 14mm 1/2 inch BSP Male Elbow, WP2211453, Length: 29 mm
Brand: Janatics
SKU: MSNO5WNXD02Q51
Price: 660 INR
Availability: OutOfStock

MRP ₹330 (Incl. of all taxes)

₹279 ₹51 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Attractive Design.
Compact Size.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Bubble Tight Sealing of Tubes.
Suitable for Both Nylon & Pu Tubing.
Easy & Quick Push in Connection of Tube/easy Removal of Tube by Simple Pressing of Collet Cap.
New Design Stainless Steel Collet.
Teflon Pre Coated Male Taper Threads.
maintenance Free & Long Life.
The Fitment & Function of Tubes Are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5-60 deg C
Item Code	WP2211453
Length	29 mm
Material	Polyurethane
Medium	Air
Notes	Product Once Sold will Not be Returned
Operating Pressure	10 bar
Outer Diameter	14 mm
Overall Diameter	23 mm
Series	WP2
Thread Size	1/2 inch
Thread Type	BSP
Tolerance	Less or More 0.1 mm
Wrench Size	22 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Male Elbow
Dimensions LxWxH	4.3x4.8x2.4 cm
Weight	754 g

Show All Specifications

Product Details

Introducing the Janatics 14mm 1/2 inch BSP Male Elbow, WP2211453, perfect for your pneumatic systems. This durable elbow fitting, part of our Elbow Fittings category, features a Thread Size of 1/2 inch and can withstand Operating Pressures up to 10 bar. Suitable for use with Air mediums, with a tolerance of less or more 0.1 mm. With an Ambient Temperature range of 5-60 deg C, this elbow fitting has an Overall Diameter of 23 mm and a Length of 29 mm. Please note that once sold, this product cannot be returned. Upgrade your pneumatic systems with Janatics today!
