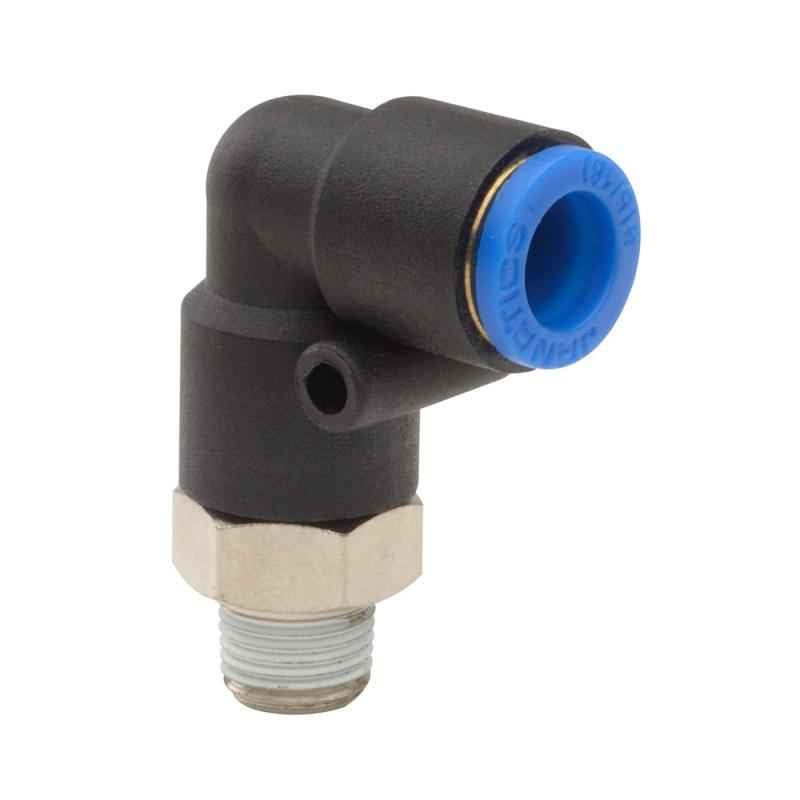

Janatics 4mm 1/4 inch BSP Male Elbow, WP2210451, Length: 18.5 mm

Name: Janatics 4mm 1/4 inch BSP Male Elbow, WP2210451, Length: 18.5 mm
Brand: Janatics
SKU: MSNR50NJQ14151
Price: 11800 INR
Availability: OutOfStock

MRP ₹59 (Incl. of all taxes)

₹50 ₹9 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Attractive Design.
Compact Size.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Bubble Tight Sealing of Tubes.
Suitable for Both Nylon & Pu Tubing.
Easy & Quick Push in Connection of Tube/easy Removal of Tube by Simple Pressing of Collet Cap.
New Design Stainless Steel Collet.
Teflon Pre Coated Male Taper Threads.
maintenance Free & Long Life.
The Fitment & Function of Tubes Are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5-60 deg C
Item Code	WP2210451
Length	18.5 mm
Material	Polyurethane
Medium	Air
Notes	Product Once Sold will Not be Returned
Operating Pressure	10 bar
Outer Diameter	4 mm
Overall Diameter	10.5 mm
Series	WP2
Thread Size	1/4 inch
Thread Type	BSP
Tolerance	Less or More 0.1 mm
Wrench Size	14 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Male Elbow
Dimensions LxWxH	1x0.5x0.5 cm
Weight	754 g

Show All Specifications

Product Details

Introducing the Janatics 4mm 1/4 inch BSP Male Elbow, WP2210451, perfect for your pneumatic system needs. This high-quality elbow fitting, part of the Janatics brand, is designed with a 1/4 inch thread size and an overall diameter of 10.5mm. With an operating pressure of 10 bar and a temperature range of 5-60 degrees Celsius, this elbow fitting is suitable for air mediums. The product also boasts a tolerance of less or more 0.1mm, ensuring precise and reliable performance. Please note, once sold, this product will not be returned. Upgrade your system with the Janatics Male Elbow today.
