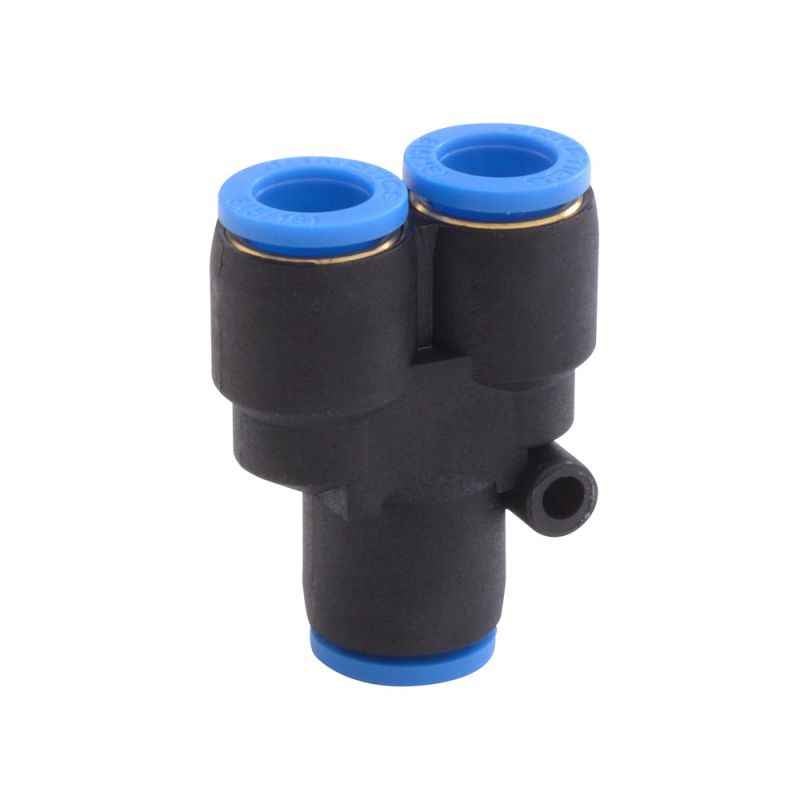

Janatics 4mm Y Type Union, WP2400404, Length: 31.5 mm

Name: Janatics 4mm Y Type Union, WP2400404, Length: 31.5 mm
Brand: Janatics
SKU: MSNM9XYX62QPKJ
Price: 25200 INR
Availability: OutOfStock

MRP ₹126 (Incl. of all taxes)

₹106 ₹20 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Compact Size.
Attractive Design.
Maintenance Free & Long Life.
Bubble Tight Sealing of Tubes.
New Design Stainless Steel Collet.
Suitable for Both Nylon & PU Tubing.
Teflon Pre Coated Male Taper Threads.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Easy & Quick Push in Connection of Tube/Easy Removal of Tube by Simple Pressing of Collet Cap.
The Fitment & Function of Tubes are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5-60 deg C
Item Code	WP2400404
Length	31.5 mm
Medium	Air
Notes	Product Once Sold will not be Returned
Operating Pressure	10 bar
Outer Diameter	4 mm
Overall Diameter	10.5 mm
Series	WP2
Tolerance	Less or More 0.1 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Union
Dimensions LxWxH	7.3x3.8x4.2 cm
Weight	754 g

Show All Specifications

Product Details

Introducing the Janatics 4mm Y Type Union, WP2400404 in our Union Fittings category. This high-quality union fitting from Janatics has a length of 31.5 mm and is designed for an operating pressure of 10 bar. Made specifically for air, this union fitting has a size of 4 mm and a tolerance of less or more 0.1 mm. With an ambient temperature range of 5-60 deg C, this fitting has an overall diameter of 10.5 mm. Please note that once sold, this product will not be returned. Upgrade your pneumatic system with the reliable Janatics Y Type Union fitting.

Browse through the extensive list of Union Fittings at Moglix. Shop online for other Janatics Union Fittings. available at Moglix in the lowest price range.
