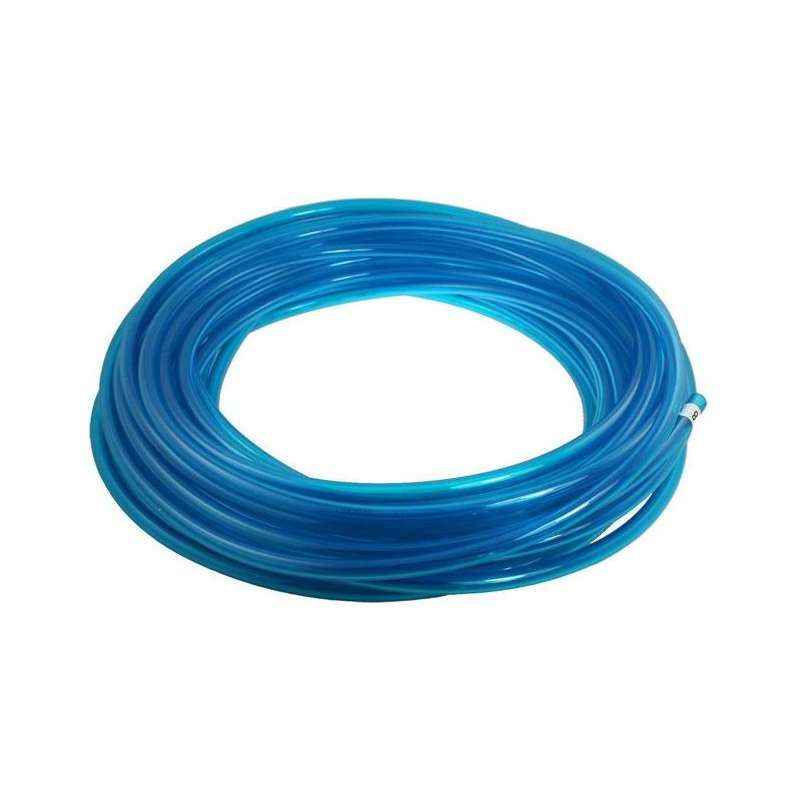

Janatics 6mm Blue Polyurethane Tube, WH00B06

Name: Janatics 6mm Blue Polyurethane Tube, WH00B06
Brand: Janatics
SKU: MSN2RCN40EBA1R
Price: 6800 INR
Availability: OutOfStock

MRP ₹34 (Incl. of all taxes)

₹28 ₹6 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Attractive design.
Compact size.
Threaded nipples of L,T and Y fittings enable plastic portion to turn by 360 degree.
Full area of the inner bore of the tubing is available for flow of fluid.
Bubble tight sealing of tubes.
Suitable for both Nylon and PU tubing.
Easy and quick push in connection of tube/easy removal of tube by simple pressing of collet cap.
New design Stainless steel collet.
Teflon pre coated male taper threads.
Maintenance free and long life.
The fitment and function of tubes are not affected by vibrations due to positive gripping of the tube by the collet.

Show All Key Features

Product Specifications

Brand	Janatics
Colour	Blue
Material	Polyurethane
Outer Diameter	6 mm
Bending Radius	15 mm
Item Code	WH00B06
Operating Medium	Compressed Air
Series	WP2
Temperature Range	5 to 60 deg C
Working Pressure	10 bar
Additional Details	Tolerance: 0.1 mm Thickness: 1 mm Torque: 7-9 Nm Care Instructions: Cut the tube- end burr free and square, using Tube cutter ( WC1 ) and clean the edge to ensure leaktight joints. (Do not use blunt tools / hacksaw / chisel etc,Ensure the tube is fully inserted into the fitting - until the positive stop, beyond the U seal.
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Polyurethane Tube
Dimensions LxWxH	36x11.5x11.5 cm
Weight	95 g

Show All Specifications

Product Details

The Janatics PU Tubes are a top-quality product designed to meet your pneumatic needs. With a working pressure of 10 bar, these tubes provide exceptional performance and reliability. The outer diameter of 6 mm ensures compatibility with various pneumatic systems, offering seamless integration and smooth operation. Crafted from high-grade polyurethane material, these tubes are built to last. The durable construction ensures that they can withstand harsh conditions and heavy-duty usage, making them ideal for both industrial and commercial applications. The blue color adds a touch of vibrancy, making it easy to identify and differentiate from other tubes in your setup. Janatics is a renowned brand known for its commitment to excellence and innovation. Their PU Tubes are no exception, offering exceptional quality at a competitive price. This not only makes them an economical choice but also ensures a long-lasting solution for your pneumatic requirements. Invest in Janatics PU Tubes and experience the peace of mind that comes with long life and reliability.

Shop Janatics 6mm Blue Polyurethane Tube, WH00B06 at discounted prices online in India. If you have been seeking for Janatics 6mm Blue Polyurethane Tube, WH00B06 dealers, that search is over here. You can buy Janatics 6mm Blue Polyurethane Tube, WH00B06 of the highest caliber and be confident that you will receive the best in terms of efficiency and durability. If the Janatics 6mm Blue Polyurethane Tube, WH00B06 rates are a concern for you, be confident that Moglix will provide the best prices. We offer genuine Janatics 6mm Blue Polyurethane Tube, WH00B06 pricing and the highest quality that is unmatched by others. Buy Janatics 6mm Blue Polyurethane Tube, WH00B06 today and avail the best deal on your shopping.

Browse through the extensive list of PU Tubes at Moglix. Shop online for other Janatics PU Tubes. available at Moglix in the lowest price range.
