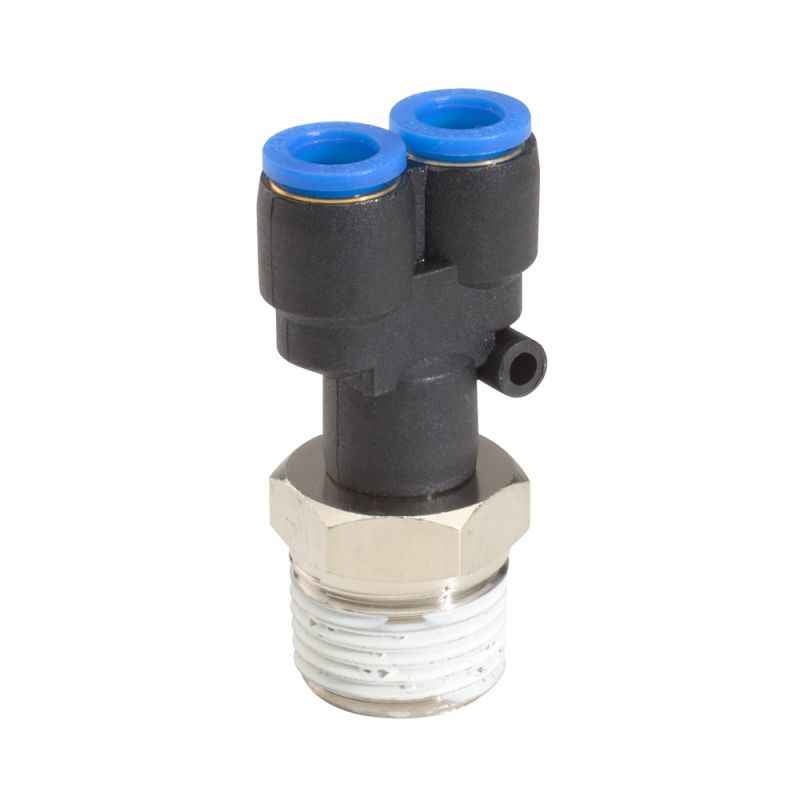

Janatics 6mm Y Type Male Branch, WP2410651, Length: 48 mm

Name: Janatics 6mm Y Type Male Branch, WP2410651, Length: 48 mm
Brand: Janatics
SKU: MSN8KLPWJZW75V
Price: 27600 INR
Availability: OutOfStock

MRP ₹138 (Incl. of all taxes)

₹116 + ₹22 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Compact Size.
Attractive Design.
Maintenance Free & Long Life.
Bubble Tight Sealing of Tubes.
New Design Stainless Steel Collet.
Suitable for Both Nylon & PU Tubing.
Teflon Pre Coated Male Taper Threads.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Easy & Quick Push in Connection of Tube/Easy Removal of Tube by Simple Pressing of Collet Cap.
The Fitment & Function of Tubes are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5-60 deg C
Item Code	WP2410651
Length	48 mm
Medium	Air
Notes	Product Once Sold will not be Returned
Operating Pressure	10 bar
Outer Diameter	6 mm
Overall Diameter	12.5 mm
Series	WP2
Thread Size	1/4 inch
Tolerance	Less or More 0.1 mm
Wrench Size	14 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Y Type PU Male Branch
Dimensions LxWxH	7.3x3.8x4.2 cm
Weight	754 g

Show All Specifications

Product Details

Introducing the Janatics 6mm Y Type Male Branch, WP2410651, perfect for your pneumatic system needs. This fitting, designed for a 1/4 inch thread size, is ideal for branching off in your air system. With an operating pressure of 10 bar and a tolerance of less or more 0.1 mm, this fitting ensures optimal performance. The Y Type design allows for efficient airflow distribution, making it suitable for medium air applications. With an overall diameter of 12.5 mm and a length of 48 mm, this fitting is compact and versatile. Please note, once sold, this product cannot be returned, so make sure it suits your needs. Suitable for ambient temperatures ranging from 5-60 deg C, the Janatics Y Type Male Branch is a reliable choice for your pneumatic system.
