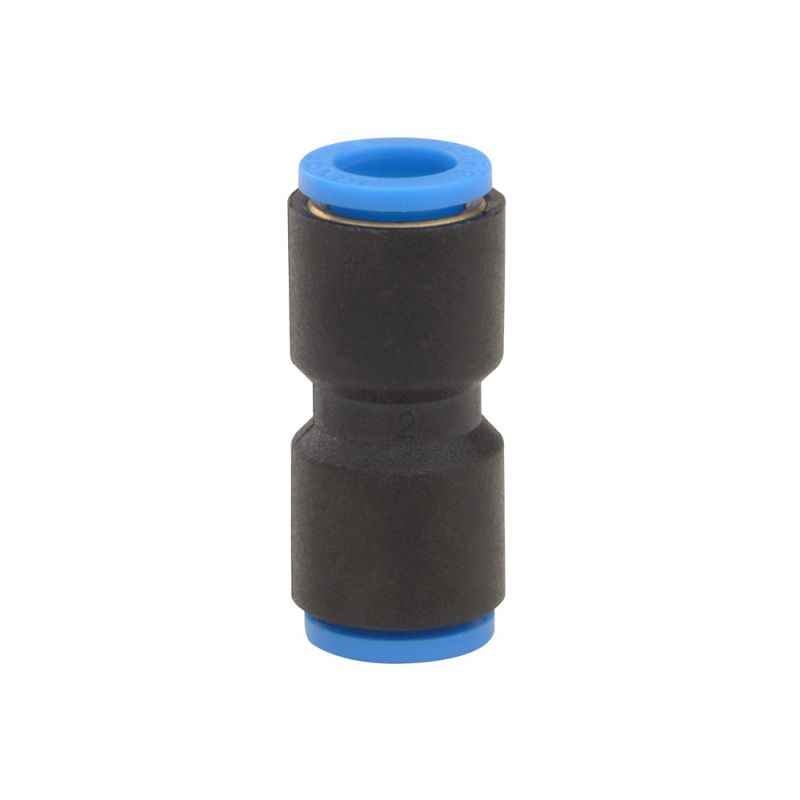

Janatics 6x10mm Different Dia Straight Union, WP2140610, Length: 41 mm

Name: Janatics 6x10mm Different Dia Straight Union, WP2140610, Length: 41 mm
Brand: Janatics
SKU: MSNM9XYX62GRKJ
Price: 27600 INR
Availability: OutOfStock

MRP ₹138 (Incl. of all taxes)

₹116 ₹22 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Compact Size.
Attractive Design.
Maintenance Free & Long Life.
Bubble Tight Sealing of Tubes.
New Design Stainless Steel Collet.
Suitable for Both Nylon & PU Tubing.
Teflon Pre Coated Male Taper Threads.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Easy & Quick Push in Connection of Tube/Easy Removal of Tube by Simple Pressing of Collet Cap.
The Fitment & Function of Tubes are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5-60 deg C
Item Code	WP2140610
Length	41 mm
Medium	Air
Notes	Product Once Sold will not be Returned
Operating Pressure	10 bar
Overall Diameter	18.5 mm
Series	WP2
Size	6x10 mm
Tolerance	Less or More 0.1 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Union
Dimensions LxWxH	7.3x3.8x4.2 cm
Weight	754 g

Show All Specifications

Product Details

Introducing the Janatics 6x10mm Straight Union, perfect for ensuring seamless connection and efficient airflow in your pneumatic systems. Specifically designed for the Union Fittings category, this high-quality product is brought to you by the renowned brand, Janatics. With a length of 41 mm and an overall diameter of 18.5 mm, it guarantees uncompromised performance and durability. Operating at a pressure of 10 bar, this union fitting ensures reliable functionality even in demanding environments. Crafted for air-based applications, its medium is air. The product features a tolerance of less or more 0.1 mm, providing precise fitting with minimal room for error. With an ambient temperature range of 5-60 degrees Celsius, this union fitting can withstand both hot and cold conditions. However, please note that once sold, this product is non-returnable. Upgrade your pneumatic systems with the Janatics 6x10mm Straight Union and experience enhanced efficiency and longevity.
