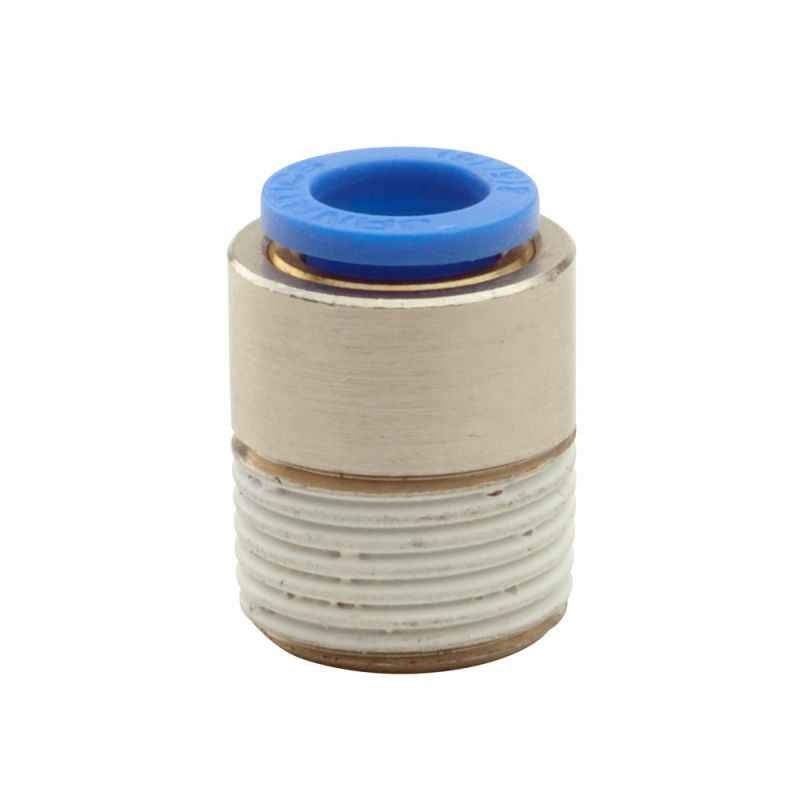

Janatics 8mm 1/4 inch BSP Male Connector, WP2130851

Name: Janatics 8mm 1/4 inch BSP Male Connector, WP2130851
Brand: Janatics
SKU: MSNM9XYX60QPKJ
Price: 21200 INR
Availability: OutOfStock

MRP ₹106 (Incl. of all taxes)

₹89 ₹17 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Attractive Design.
Compact Size.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Bubble Tight Sealing of Tubes.
Suitable for Both Nylon & Pu Tubing.
easy & Quick Push in Connection of Tube/Easy Removal of Tube by Simple Pressing of Collet Cap.
New Design Stainless Steel Collet.
Teflon Pre Coated Male Taper Threads.
Maintenance Free & Long Life.
The Fitment & Function of Tubes Are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5 to 60 deg C
Diameter	8 mm
Item Code	WP2130851
Length	27 mm
Medium	Air
Notes	Product Once Sold will not be Returned
Operating Pressure	10 bar
Overall Diameter	14.5 mm
Series	WP2
Thread Size	1/4 inch
Thread Type	BSP
Tolerance	Less or More 0.1 mm
Wrench Size	6 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Male Connector
Weight	754 g

Show All Specifications

Product Details

Upgrade your pneumatic system with the Janatics 8mm 1/4 inch BSP Male Connector, WP2130851. This high-quality connector, with a thread size of 1/4 inch, is designed to withstand operating pressures of up to 10 bar, making it suitable for a variety of air applications. The connector has a diameter of 8mm and is built to tolerate variations of up to 0.1mm. With a medium of air and an ambient temperature range of 5 to 60 degrees Celsius, this connector is a reliable choice for your pneumatic needs. Please note that once sold, this product will not be eligible for return. Upgrade to Janatics for top-of-the-line pneumatic components.
