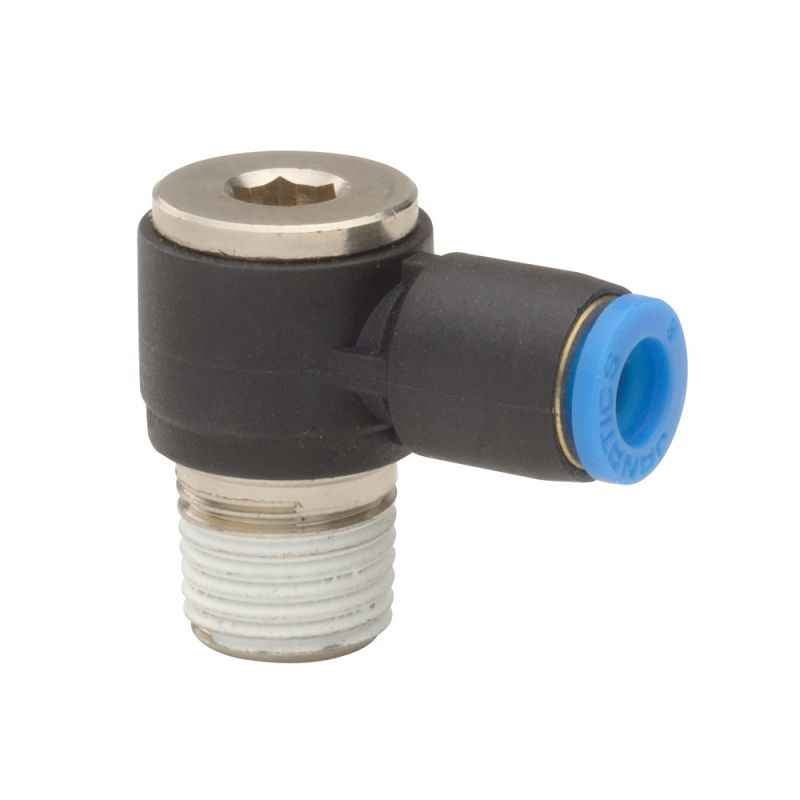

Janatics 8mm Internal Hexagonal Socket Single Swivel, WS0210850, Length: 22 mm

Name: Janatics 8mm Internal Hexagonal Socket Single Swivel, WS0210850, Length: 22 mm
Brand: Janatics
SKU: MSNRKREPJ1YN9N
Price: 29400 INR
Availability: OutOfStock

MRP ₹147 (Incl. of all taxes)

₹124 ₹23 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Compact Size.
Attractive Design.
Maintenance Free & Long Life.
Bubble Tight Sealing of Tubes.
New Design Stainless Steel Collet.
Suitable for Both Nylon & PU Tubing.
Teflon Pre Coated Male Taper Threads.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Easy & Quick Push in Connection of Tube/Easy Removal of Tube by Simple Pressing of Collet Cap.
The Fitment & Function of Tubes are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5-60 deg C
Item Code	WS0210850
Length	22 mm
Medium	Air
Notes	Product Once Sold will not be Returned
Operating Pressure	10 bar
Outer Diameter	8 mm
Overall Diameter	13.5 mm
Series	WP2
Thread Size	1/8 inch
Tolerance	Less or More 0.1 mm
Wrench Size	5 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Hexagonal Socket
Dimensions LxWxH	7.3x3.8x4.2 cm
Weight	754 g

Show All Specifications

Product Details

Introducing the Janatics 8mm Internal Hexagonal Socket Single Swivel, WS0210850, with a length of 22mm. This high-quality Banjo Fitting from Janatics features a thread size of 1/8 inch and is designed for use with a maximum operating pressure of 10 bar. Suitable for medium air applications, this fitting offers a tolerance of less or more 0.1mm for precise connections. With an ambient temperature range of 5-60 deg C and an overall diameter of 13.5mm, this fitting is a versatile and reliable choice for your pneumatic system needs. Please note that once sold, this product is non-returnable.
