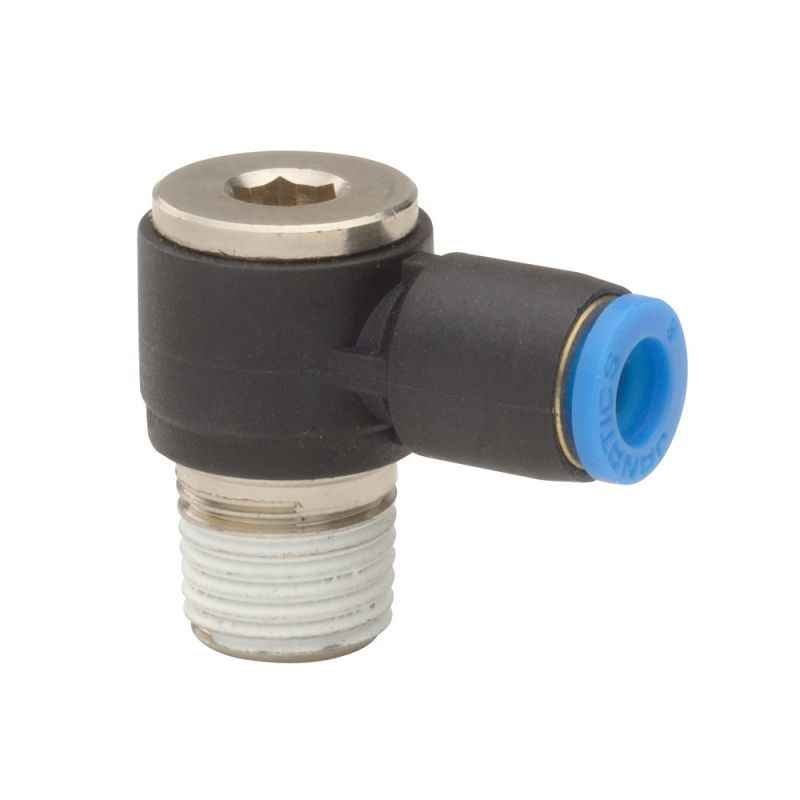

Janatics 8mm Internal Hexagonal Socket Single Swivel, WS0210851, Length: 28.5 mm

Name: Janatics 8mm Internal Hexagonal Socket Single Swivel, WS0210851, Length: 28.5 mm
Brand: Janatics
SKU: MSNM9XYX623RKJ
Price: 30600 INR
Availability: OutOfStock

MRP ₹153 (Incl. of all taxes)

₹129 ₹24 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Compact Size.
Attractive Design.
Maintenance Free & Long Life.
Bubble Tight Sealing of Tubes.
New Design Stainless Steel Collet.
Suitable for Both Nylon & PU Tubing.
Teflon Pre Coated Male Taper Threads.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Easy & Quick Push in Connection of Tube/Easy Removal of Tube by Simple Pressing of Collet Cap.
The Fitment & Function of Tubes are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5-60 deg C
Item Code	WS0210851
Length	28.5 mm
Medium	Air
Notes	Product Once Sold will not be Returned
Operating Pressure	10 bar
Outer Diameter	8 mm
Overall Diameter	18 mm
Series	WP2
Thread Size	1/4 inch
Tolerance	Less or More 0.1 mm
Wrench Size	6 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Hexagonal Socket
Dimensions LxWxH	4.5x4x1.7 cm
Weight	754 g

Show All Specifications

Product Details

Introducing the Janatics 8mm Internal Hexagonal Socket Single Swivel, WS0210851, a top-of-the-line banjo fitting designed with precision and durability in mind. With a thread size of 1/4 inch, this fitting is perfect for various pneumatic applications. The product features an overall diameter of 18 mm and a length of 28.5 mm, with a tolerance of less or more 0.1 mm. Operating pressure at 10 bar and medium air compatibility make it ideal for a wide range of industrial uses. Please note that once sold, this product cannot be returned. Suitable for ambient temperatures ranging from 5-60 deg C, this Janatics banjo fitting is a reliable choice for your pneumatic systems.
