Janatics 8mm Y Type Male Branch, WP2410850, Length: 49.5 mm

Name: Janatics 8mm Y Type Male Branch, WP2410850, Length: 49.5 mm
Brand: Janatics
SKU: MSNR50NJQ8L151
Price: 29400 INR
Availability: OutOfStock

MRP ₹147 (Incl. of all taxes)

₹124 ₹23 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Compact Size.
Attractive Design.
Maintenance Free & Long Life.
Bubble Tight Sealing of Tubes.
New Design Stainless Steel Collet.
Suitable for Both Nylon & PU Tubing.
Teflon Pre Coated Male Taper Threads.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Easy & Quick Push in Connection of Tube/Easy Removal of Tube by Simple Pressing of Collet Cap.
The Fitment & Function of Tubes are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5-60 deg C
Item Code	WP2410850
Length	49.5 mm
Medium	Air
Notes	Product Once Sold will not be Returned
Operating Pressure	10 bar
Outer Diameter	8 mm
Overall Diameter	15 mm
Series	WP2
Thread Size	1/8 inch
Tolerance	Less or More 0.1 mm
Wrench Size	14 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Y Type PU Male Branch
Weight	754 g

Show All Specifications

Product Details

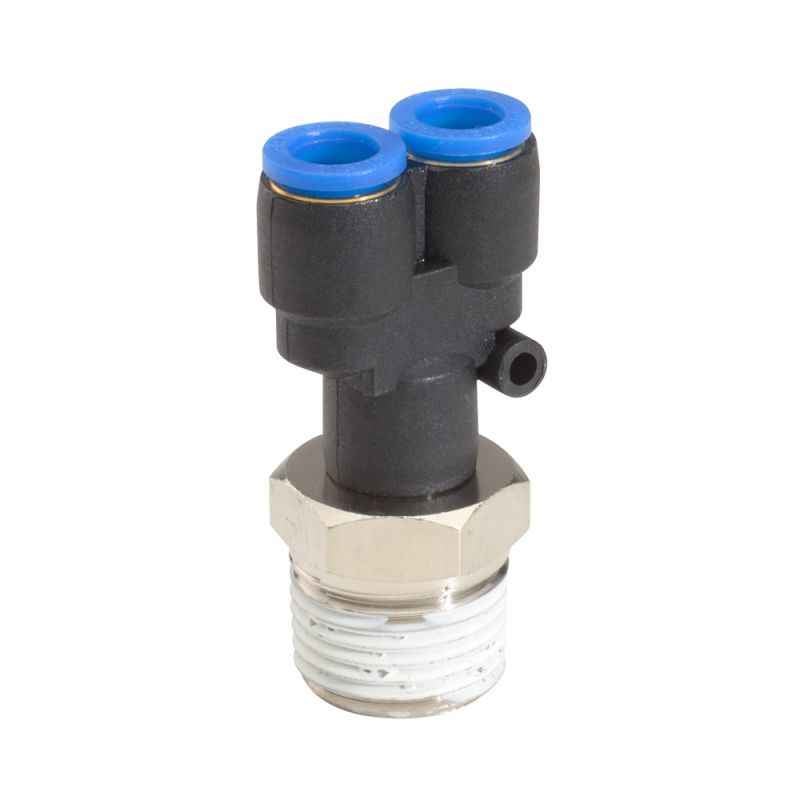

Introducing the Janatics 8mm Y Type Male Branch fitting, WP2410850, designed for superior performance in air systems. This Y type fitting features a thread size of R1/8\
