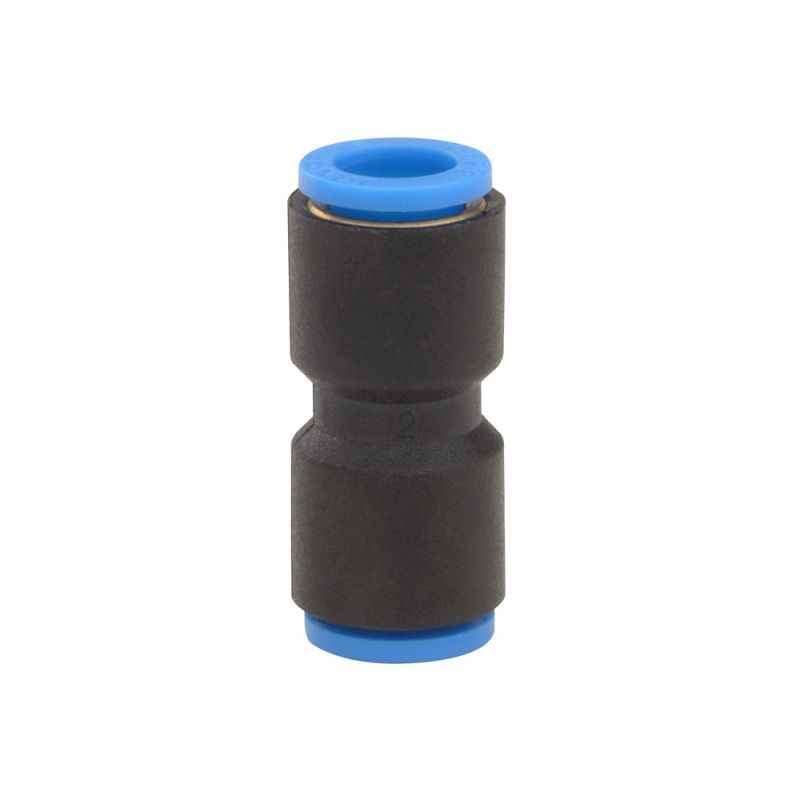

Janatics 8x10mm Different Dia Straight Union, WP2140810, Length: 37.5 mm

Name: Janatics 8x10mm Different Dia Straight Union, WP2140810, Length: 37.5 mm
Brand: Janatics
SKU: MSN39YRMYZ7N5Q
Price: 31800 INR
Availability: OutOfStock

MRP ₹159 (Incl. of all taxes)

₹134 ₹25 GST

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Compact Size.
Attractive Design.
Maintenance Free & Long Life.
Bubble Tight Sealing of Tubes.
New Design Stainless Steel Collet.
Suitable for Both Nylon & PU Tubing.
Teflon Pre Coated Male Taper Threads.
Full Area of the Inner Bore of the Tubing is Available for Flow of Fluid.
Threaded Nipples of L,T & Y Fittings Enable Plastic Portion to Turn by 360 deg.
Easy & Quick Push in Connection of Tube/Easy Removal of Tube by Simple Pressing of Collet Cap.
The Fitment & Function of Tubes are Not Affected by Vibrations Due to Positive Gripping of the Tube by the Collet.

Show All Key Features

Product Specifications

Brand	Janatics
Ambient Temperature	5-60 deg C
Item Code	WP2140810
Length	37.5 mm
Medium	Air
Notes	Product Once Sold will not be Returned
Operating Pressure	10 bar
Overall Diameter	18.5 mm
Series	WP2
Size	8x10 mm
Tolerance	Less or More 0.1 mm
Country of origin	India
Manufacturer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Packer Details	Janatics India Pvt ltd, SF No : 252 / 1B1, Bodipalayam, Seerapalayam Village, Madukarai Post, Coimbatore - 641 105, Tamil Nadu, INDIA
Common/Generic Name	Union
Dimensions LxWxH	7.3x3.8x4.2 cm
Weight	754 g

Show All Specifications

Product Details

The Janatics 8x10mm Straight Union in the WP2140810 model is an essential component in the Union Fittings category. It is designed by the reliable brand, Janatics, and has certain important notes to consider - once sold, it cannot be returned. This straight union is specifically designed to withstand an operating pressure of 10 bar. With a size of 8x10 mm, it is suitable for air as its medium. The union offers a tolerance of less or more 0.1 mm, ensuring precise and accurate fittings. It is built to function optimally in an ambient temperature range of 5 to 60 degrees Celsius. Furthermore, its overall diameter measures at 18.5 mm, providing a sturdy and efficient connection.
