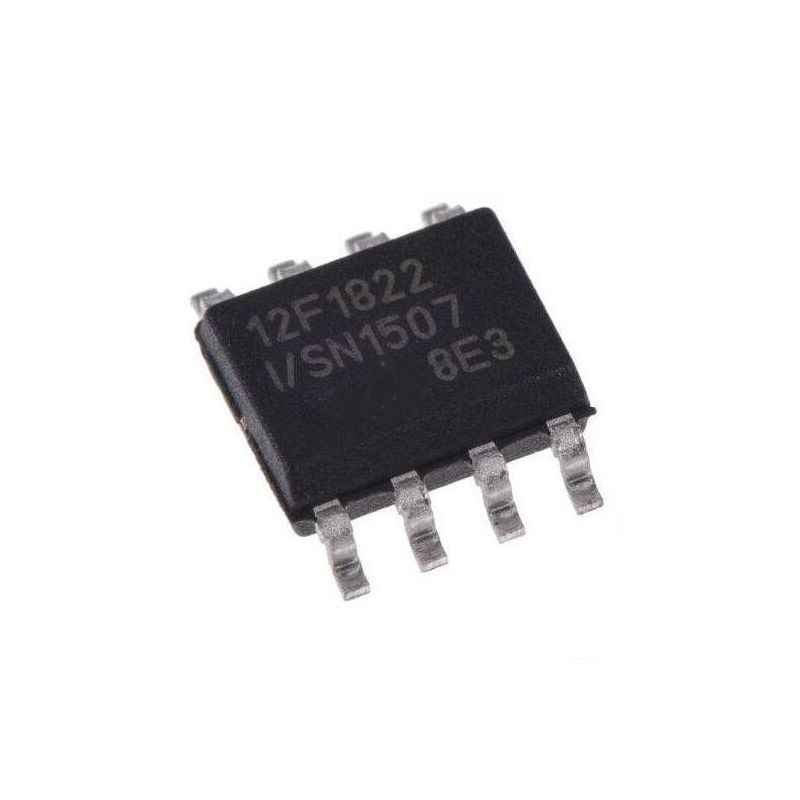

Microchip PIC 12F1822 I/SN 8 Pin Microcontroller Integrated Circuit (Pack of 2)

Name: Microchip PIC 12F1822 I/SN 8 Pin Microcontroller Integrated Circuit (Pack of 2)
Brand: Microchip
SKU: MSN2QRHA87JC7L
Price: 125 INR
Availability: OutOfStock

₹125 (Incl. of all taxes)

₹105 ₹20 GST

MRP ₹132 5% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

256 bytes of EEPROM/HEF Data Memory.
1 Comparators.
Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C).
Capture/Compare/PWM Peripherals: 1 ECCP.
Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels.
Flash Program Memory with self read/write capability.
Internal 32MHz oscillator.
Integrated Capacitive mTouch Sensing Module.
Data Signal Modulator Module.
MI2C, SPI, EUSART w/auto baud.
ECCP (Enhanced/Capture Compare PWM) Module.
Comparator with selectable Voltage Reference.
4 Channel 10b ADC with Voltage Reference.
25mA Source/Sink current I/O.
Two 8-bit Timers (TMR0/TMR2).
One 16-bit Timer (TMR1).
Extended Watchdog Timer (EWDT).
Enhanced Power-On/Off-Reset.
Brown-Out Reset (BOR).
In Circuit Serial Programming (ICSP).
On Board In-Circuit Debug.
Wide Operating Voltage (1.8-5.5 V).
Low Power PIC12LF182x variants (1.8V – 3.6V).
Standby Current (PIC12LF182X): 20 nA at 1.8 V, typical.
Active Current(PIC12LF1822): 50 uA/MHz at 1.8 V, typical.

Show All Key Features

Product Specifications

Brand	Microchip
CPU (Processor) Speed	8 MIPS/DMIPS
Item Code	PIC 12F1822 I/SN
Items in Pack	2 Pieces
Low Power Consumption	Yes
Memory	Type: Flash Size: 3.5 KB
Mounting type	SMD
Operating Voltage Range	1.8 to 5.5 V
Pin Count	8
RAM	Static: 128 Bytes
Temperature Range	-40 to 125 deg C
Timer	2x8-bit & 1x16-bit
Common/Generic Name	Integrated Circuit
Dimensions LxWxH	42.8x36.4x3.3 mm
Weight	150 g

Show All Specifications

Product Details

Microchip PIC 12F1822 I/SN 8 Pin Microcontroller Integrated Circuit (Pack of 2) is a premium quality product from Microchip . Moglix is a well-known ecommerce platform for qualitative range of Integrated Circuits. All Microchip PIC 12F1822 I/SN 8 Pin Microcontroller Integrated Circuit (Pack of 2) are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Microchip PIC 12F1822 I/SN 8 Pin Microcontroller Integrated Circuit (Pack of 2), are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Microchip products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Microchip Integrated Circuits .
