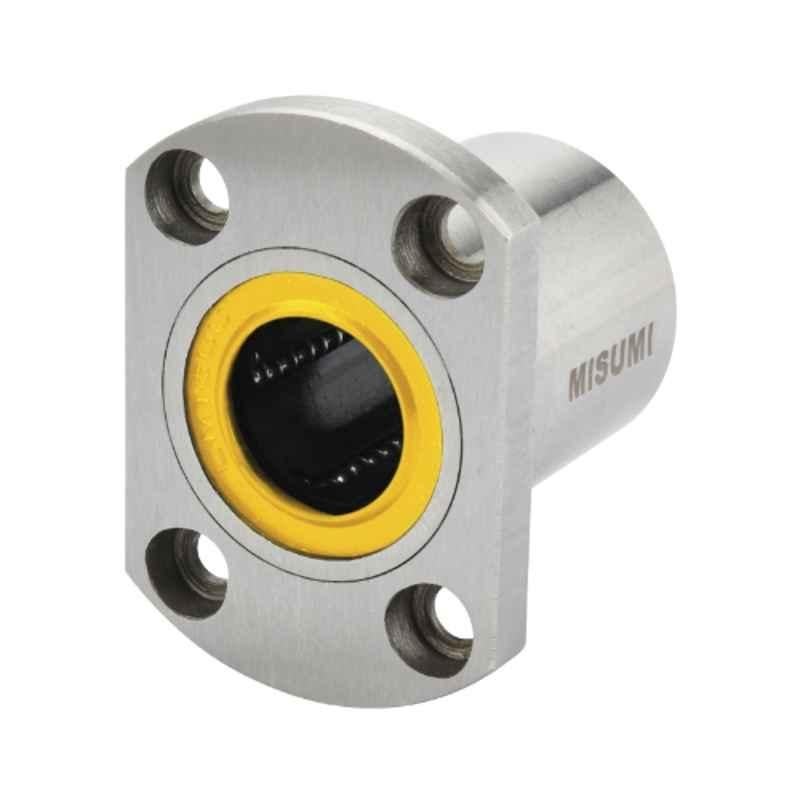

MISUMI 24mm 5mm Compact Flanged Linear Bushing, E-LBHM8UU

Name: MISUMI 24mm 5mm Compact Flanged Linear Bushing, E-LBHM8UU
Brand: MISUMI
SKU: MSNE9J8VJVJ09D
Price: 536 INR
Availability: OutOfStock

₹536 (Incl. of all taxes)

₹454 ₹82 GST

MRP ₹1,294 58% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Compact Design for Space-saving Applications.
Single and Double Ball Recirculating Options for Flexibility.
Supports a Range of Shaft Diameters.
Optional Surface Treatments for Enhanced Rust Protection, Ideal for Robotic Equipment & Precision Machinery.

Show All Key Features

Product Specifications

Brand	MISUMI
Additional Details	Negative Side Inscribed Circle Dia. Tolerance: -0.018 Inscribed Circle Dia.: 16 mm Motion: Linear Ball Recirculating Type: Single Type: Single, Double & Opposite Counterbored Hole
Dynamic Load	265 N
Housing Material	Equivalent to SUJ2
Length	24 mm
Material	Outer Sleeve: Steel Retainer: Plastic Seal: Nitrite Rubber
Model	E-LBHM8UU
Operating Temperature	-20 to 80 deg C
Series	E-LBHM
Static Load	380 N
eccentricity	0.024
Country of origin	India
Manufacturer Details	Plot no 31, Electronic City, Phase IV, Udyog Vihar, Sector 18, Gurugram, Haryana 122016
Packer Details	Plot no 31, Electronic City, Phase IV, Udyog Vihar, Sector 18, Gurugram, Haryana 122016
Common/Generic Name	Linear Bushing
Dimensions LxWxH	3.6x6x3.2 mm
Weight	0.084 kg

Show All Specifications

Product Details

The Misumi 24mm 5mm Compact Flanged Linear Bushing, model E-LBHM8UU, is a top-quality product from Misumi designed for precision machinery and robotic equipment. With a dynamic load capacity of 265 N and an operating temperature range of -20 to 80 deg C, this linear bushing boasts a compact design for space-saving applications. It features single and double ball recirculating options, accommodating a range of shaft diameters. The housing material is equivalent to SUJ2, and optional surface treatments are available for enhanced rust protection. The negative side inscribed circle diameter tolerance is -0.018, with an inscribed circle diameter of 16mm. Upgrade your machinery with the Misumi E-LBHM series linear bushing for optimal performance and durability.

Browse through the extensive list of Linear Bushing at Moglix. Shop online for other MISUMI Linear Bushing. available at Moglix in the lowest price range.
