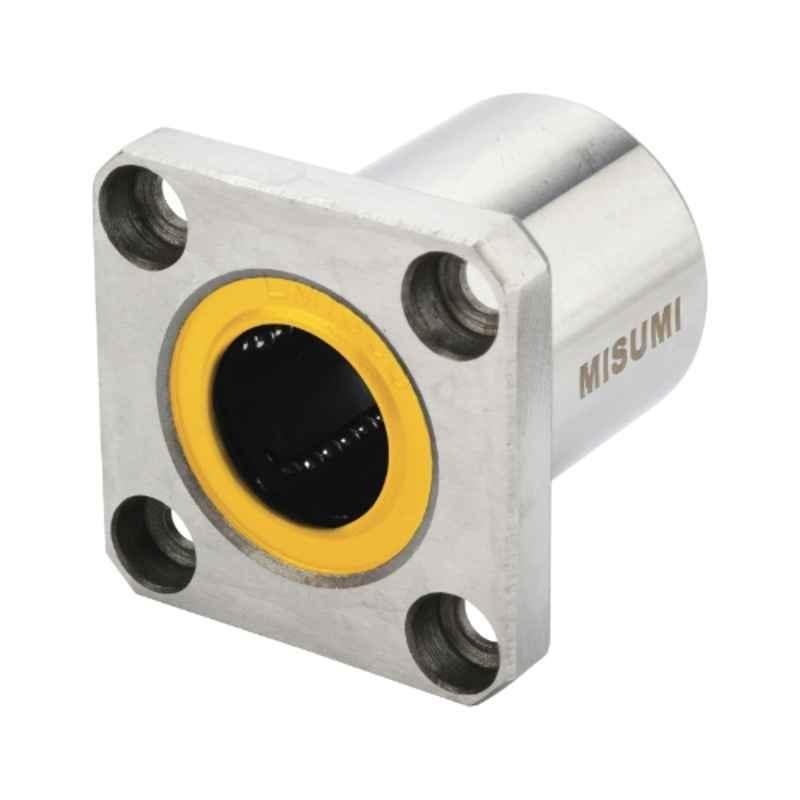

MISUMI 29mm 19mm Square Compact Flanged Linear Bushing, C-LMK10UU

Name: MISUMI 29mm 19mm Square Compact Flanged Linear Bushing, C-LMK10UU
Brand: MISUMI
SKU: MSN153V1816JK3
Price: 257 INR
Availability: OutOfStock

₹257 (Incl. of all taxes)

₹217 ₹40 GST

MRP ₹621 58% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Inscribed Circle Diameter, Opposite Counterbored Hole, Standard Counterbored Hole & Offer a Wide Variety of Sizes to Choose From.

Product Specifications

Brand	MISUMI
Additional Details	Inscribed Circle Dia: 10 mm Ball Recirculating Type: Single & Double Motion: Linear Negative Side Inscribed Circle Dia Tolerance: -0.012 mm Basic Load Rating Dynamic: 372 N Basic Load Rating Static: 549 N
Bearing Material	Outer Sleeve: Steel Retainer Material: Plastic Ball Material: Steel
Hardness	58HRC
Length	29 mm
Model	C-LMK10UU
Operating Temperature	-20 to 80 deg C
Outer Diameter	19 mm
Shaft Diameter	6/50 mm
Shape	Square
Suitable For	It is Used in Industrial Machinery Such as Conveyor Systems, Packaging Machines & Robotic Equipment
Country of origin	India
Manufacturer Details	Plot no 31, Electronic City, Phase IV, Udyog Vihar, Sector 18, Gurugram, Haryana 122016
Packer Details	Plot no 31, Electronic City, Phase IV, Udyog Vihar, Sector 18, Gurugram, Haryana 122016
Common/Generic Name	Linear Bushing
Dimensions LxWxH	13.7x9.5x2.8 cm
Weight	0.084 kg

Show All Specifications

Product Details

Upgrade your machinery with the Misumi 29mm 19mm Square Compact Flanged Linear Bushing, Model C-LMK10UU. This high-quality bushing is designed for linear motion applications, offering a wide range of benefits. With an operating temperature range of -20 to 80 deg C, this bushing features a steel outer sleeve, plastic retainer material, and steel ball material. The inscribed circle diameter is 10mm, with a hardness of 58HRC and a square shape. Enjoy precise motion control with standard counterbored holes and a variety of sizes to choose from. Trust Misumi for top-notch performance in your industrial applications.

Browse through the extensive list of Linear Bushing at Moglix. Shop online for other MISUMI Linear Bushing. available at Moglix in the lowest price range.
