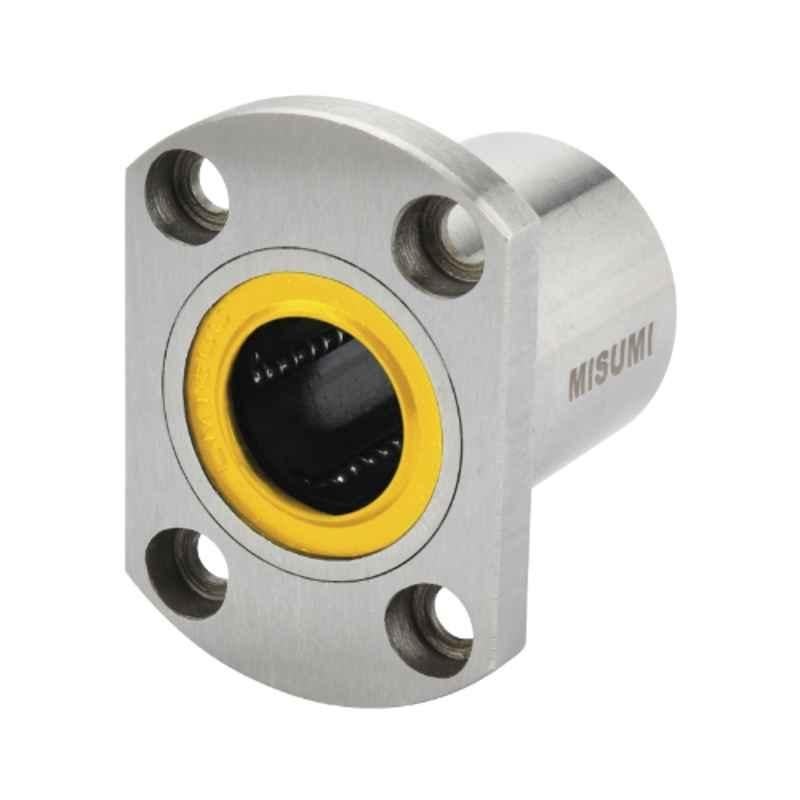

MISUMI 30mm 21mm Compact Flanged Linear Bushing, C-LMH12UU

Name: MISUMI 30mm 21mm Compact Flanged Linear Bushing, C-LMH12UU
Brand: MISUMI
SKU: MSNZ5263N3QW9X
Price: 307 INR
Availability: OutOfStock

₹307 (Incl. of all taxes)

₹260 ₹47 GST

MRP ₹741 58% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Inscribed Circle Diameter, Opposite Counterbored Hole, Standard Counterbored Hole & Offer a Wide Variety of Sizes to Choose From.

Product Specifications

Brand	MISUMI
Additional Details	Inscribed Circle Dia: 12 mm Ball Recirculating Type: Single Motion: Linear Negative Side Inscribed Circle Dia Tolerance: -0.012 mm Basic Load Rating Dynamic: 412 N Basic Load Rating Static: 598 N
Bearing Material	Outer Sleeve: Steel Retainer Material: Plastic Ball Material: Steel
Hardness	58HRC
Length	30 mm
Model	C-LMH12UU
Operating Temperature	-20 to 80 deg C
Outer Diameter	21 mm
Shaft Diameter	12 mm
Suitable For	It is Used in Industrial Machinery Such as Conveyor Systems, Packaging Machines & Robotic Equipment
Country of origin	India
Manufacturer Details	Plot no 31, Electronic City, Phase IV, Udyog Vihar, Sector 18, Gurugram, Haryana 122016
Packer Details	Plot no 31, Electronic City, Phase IV, Udyog Vihar, Sector 18, Gurugram, Haryana 122016
Common/Generic Name	Linear Bushing
Dimensions LxWxH	13.7x9.5x2.8 cm
Weight	0.084 kg

Show All Specifications

Product Details

The Misumi 30mm 21mm Compact Flanged Linear Bushing, model C-LMH12UU, is an essential component in industrial machinery such as conveyor systems, packaging machines, and robotic equipment. With an operating temperature range of -20 to 80 deg C and a hardness of 58HRC, this linear bushing is durable and reliable. The outer sleeve is made of steel, the retainer is plastic, and the balls are steel for smooth linear motion. It comes with an inscribed circle diameter of 12 mm, single ball recirculating type, and a wide variety of sizes to choose from. With basic load ratings of 412 N dynamic and 598 N static, this linear bushing is up for the challenge of heavy-duty applications.
