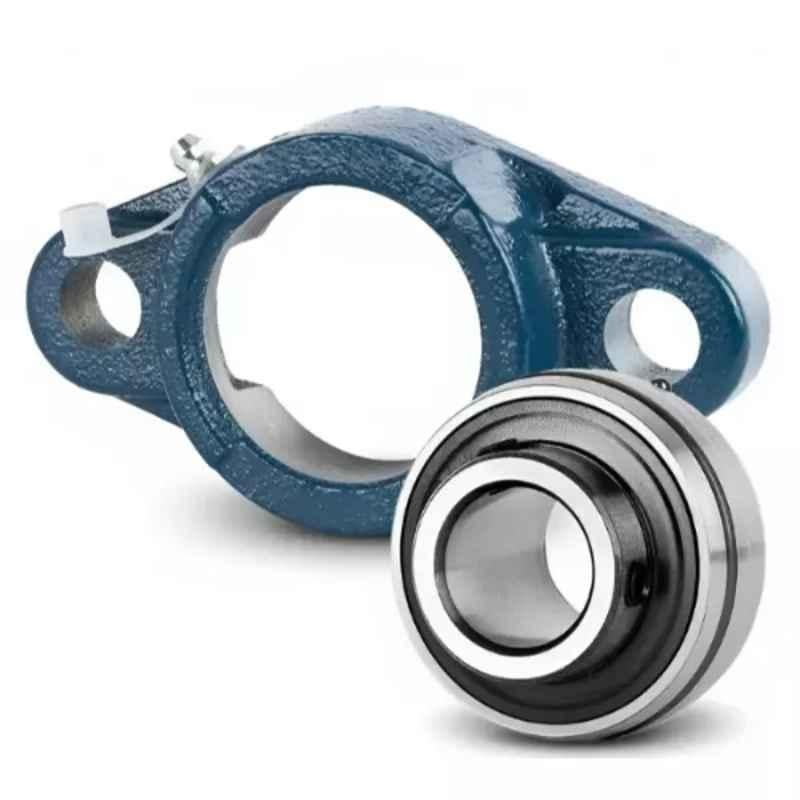

NBC UCFL209 45x108mm Oval Flange Ball Bearing Unit

₹1,311 (Incl. of all taxes)

₹1,111 + ₹200 GST

MRP ₹1,920 31% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	NBC
Additional Details	Centre Distance Between Bolt Holes: 148 mm
Diameter	Inner: 45 mm
Dynamic Load	32.5 kN
Limiting Speed	3400 rpm
Model	UCFL209
Notes	Images for Reference Pupose Only
Overall Width	Housing: 35 mm
Shaft Diameter	Shaft: 45 mm
Shaft Height	52.2 mm
Static Load Rating	20.4 kN
Width	108 mm Bearing: 49.2 mm Flange: 108 mm
Country of origin	India
Manufacturer Details	National Engineering Industries Ltd, Khatipura Road Jaipur - 302006 Rajasthan, India
Packer Details	National Engineering Industries Ltd, Khatipura Road Jaipur - 302006 Rajasthan, India
Importer Details	National Engineering Industries Ltd, Khatipura Road Jaipur - 302006 Rajasthan, India
Common/Generic Name	Flange Ball Bearing Unit
Dimensions LxWxH	45x108x0 mm
Weight	10 kg

Show All Specifications

Product Details

Introducing the NBC 45x108mm Oval Flange Ball Bearing Unit, UCFL209, your perfect solution for all your bearing block needs. With its trusted brand name NBC, you can be assured of top-notch quality and reliability. Designed for optimal performance, this bearing unit has a dynamic load rating of 32.5 kN, ensuring smooth and efficient operation even under heavy loads. Its static load rating of 20.4 kN guarantees stability and longevity. The overall width of the housing is 35 mm, providing a secure and compact fit. Please note that the images provided are for reference purposes only. With a limiting speed of 3400 rpm, this bearing unit delivers exceptional speed capabilities. For added convenience, the centre distance between the bolt holes measures 148 mm, and the width is 108 mm. Upgrade your machinery with the NBC 45x108mm Oval Flange Ball Bearing Unit, UCFL209, and experience superior performance like never before.
