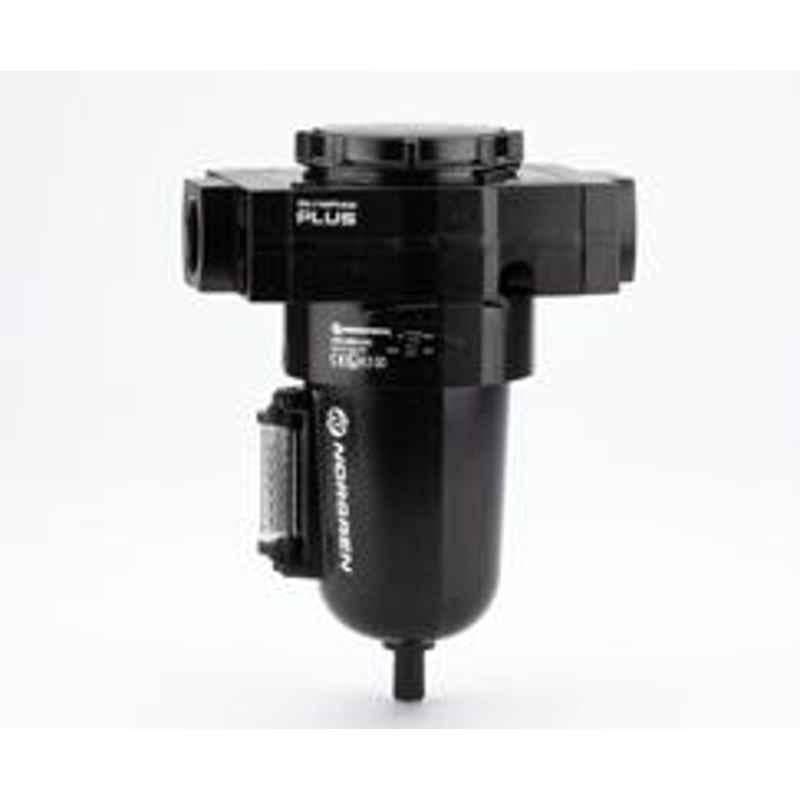

Norgren 1 inch Olympian Plus Plug-In System General Purpose Filter, F68G-8GN-AR3

AVAILABLE ON REQUEST

About This Product

Key Features

Effective Liquid Removal & Positive Solid Filtration.
Large Filter Element Area for Minimum Pressure Drop.

Product Specifications

Brand	Norgren
Ambient Temperature	-20 to 80 deg C
Body Material	Aluminium
Dimensions	25.8x19x15.2 cm
Drain Type	Automatic
Filter Element	40 µm(Standard)
Material	Liquid Level Indicator: Pyrex Element: Sintered Plastic Elastomers: NBR
Medium	Compressed Air Only
Model	F68G-8GN-AR3
Notes	Box Opening Video will be Required for any Type of Exchange
Port Size	1 inch
Service Life Indicator	Without(Standard)
Thread	ISO G Parallel(Standard)
Version	Standard Bowl (0.5 L)
Weight	2460 g
bowl type	0.5 L with Liquid Level Indicator(Standard)
Country of origin	India
Manufacturer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Packer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Common/Generic Name	General Purpose Filter
Dimensions LxWxH	25.8x19x15.2 cm
Weight	2.46 kg

Show All Specifications

Product Details

Norgren 1 inch Olympian Plus Plug-In System General Purpose Filter, F68G-8GN-AR3 is a premium quality product from Norgren . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Filters. All Norgren 1 inch Olympian Plus Plug-In System General Purpose Filter, F68G-8GN-AR3 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Norgren 1 inch Olympian Plus Plug-In System General Purpose Filter, F68G-8GN-AR3, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Norgren products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Norgren Pneumatic Filters .
