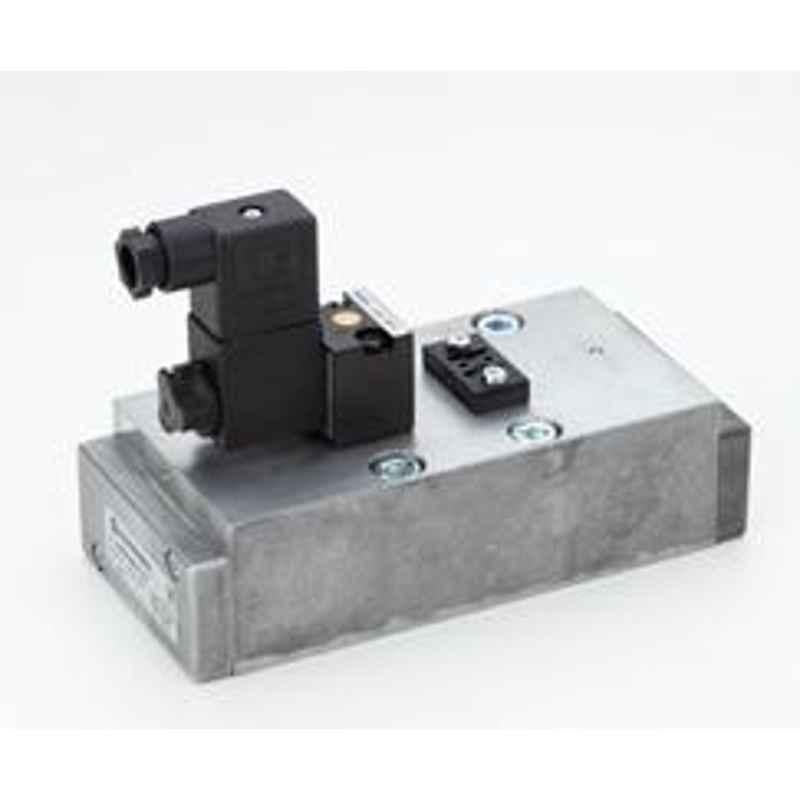

Norgren 3/4 inch Solenoid Pilot Actuated Valve, UM/22456/172/61/13J

AVAILABLE ON REQUEST

About This Product

Key Features

Low Power Coils.
Steel Reinforced Main Seals.
Wide Range of Sub-Bases & Accessories.

Product Specifications

Brand	Norgren
Actuator Type	Solenoid/Spring & Air
Ambient Temperature	-10 to 50 deg C
Body Material	Die Cast Aluminium Alloy
Dimensions	16.2x12.8x7.2 cm
Flow Rate	5660 lpm
Manual Override	Push Only
Material	Spool: Light Alloy Aluminum Seals: NBR
Medium	Compressed air, Filtered to 40 µm, Lubricated & Non-Lubricated
Model	UM/22456/172/61/13J
Mounting type	On Sub-Bases
Notes	Box Opening Video will be Required for any Type of Exchange
Operating Pressure	2.5 to 10 bar
Operation	Spool Valves, Solenoid Pilot or Air Pilot Actuated
Pilot Supply	Internal
Port Size	3/4 inch
Size	ISO: 4
Voltage	24 V DC
Weight	1260 g
Country of origin	India
Manufacturer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Packer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Common/Generic Name	Pilot Actuated Valve
Dimensions LxWxH	16.2x12.8x7.2 cm
Weight	1.26 kg

Show All Specifications

Product Details

Norgren 3/4 inch Solenoid Pilot Actuated Valve, UM/22456/172/61/13J is a premium quality product from Norgren . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Solenoid Valve. All Norgren 3/4 inch Solenoid Pilot Actuated Valve, UM/22456/172/61/13J are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Norgren 3/4 inch Solenoid Pilot Actuated Valve, UM/22456/172/61/13J, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Norgren products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Norgren Pneumatic Solenoid Valve .
