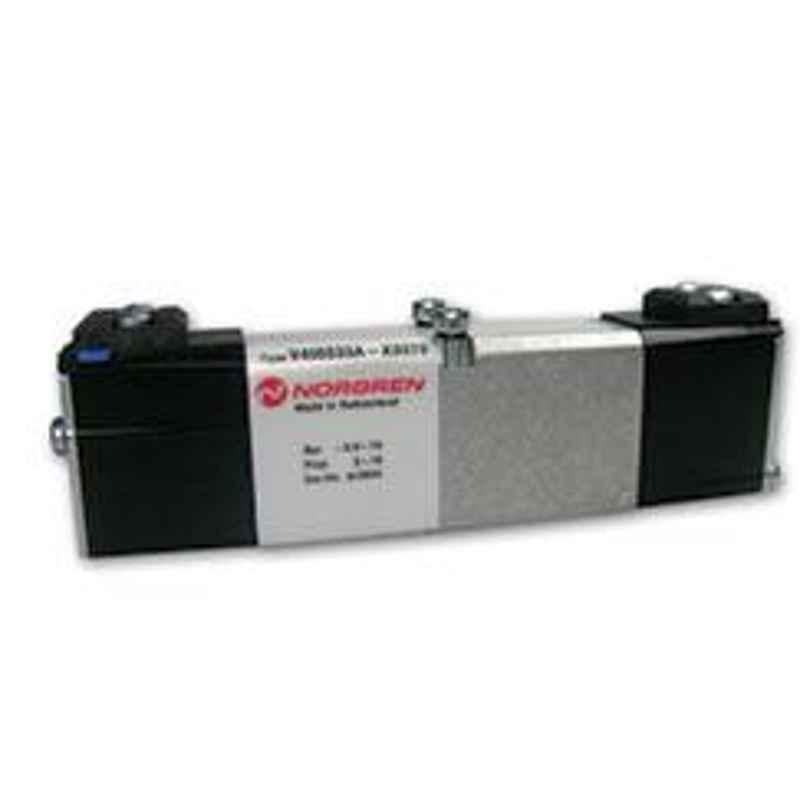

Norgren Air Pilot Actuated Softseal Valve, V415533A-X0020

AVAILABLE ON REQUEST

About This Product

Key Features

Valve Exchange Under Pressure.
High Performance, Compact Design.
Flexible Sub-Base System.
Multipressure System Capability.
Wide Range of Accessories.
Easy to Convert from Internal to External Pilot Supply.

Show All Key Features

Product Specifications

Brand	Norgren
Actuator Type	Air/Air
Ambient Temperature	-15 to 50 deg C
Body Material	Die Cast Aluminium
Dimensions	10.6x3x1.6 cm
Flow Rate	610 lpm
Material	Sub-Bases: Aluminium Alloy Spool & Sleeve: Hard Anodized Teflon Coated Plastic Parts: POM Static Seals: NBR End Cover & Screws: Zinc Plated Springs: Stainless Steel
Medium	Compressed air, Filtered to 40 µm, Lubricated or Non-Lubricated
Model	V415533A-X0020
Mounting type	Sub-Base
Notes	Box Opening Video will be Required for any Type of Exchange
Operating Pressure	-0.9 to 10 bar
Sealing System	Softseal
Weight	100 g
pilot pressure	2 to 10 bar
Country of origin	India
Manufacturer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Packer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Common/Generic Name	Pilot Actuated Softseal Valve
Dimensions LxWxH	10.6x3x1.6 cm
Weight	100 g

Show All Specifications

Product Details

Norgren Air Pilot Actuated Softseal Valve, V415533A-X0020 is a premium quality product from Norgren . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Solenoid Valve. All Norgren Air Pilot Actuated Softseal Valve, V415533A-X0020 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Norgren Air Pilot Actuated Softseal Valve, V415533A-X0020, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Norgren products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Norgren Pneumatic Solenoid Valve .
