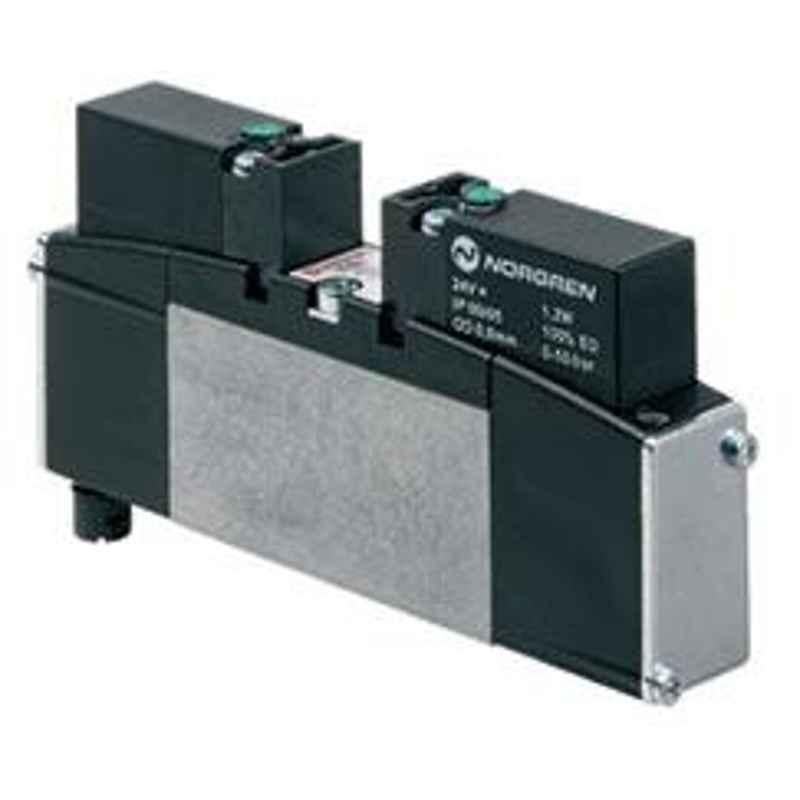

Norgren Double Solenoid Actuated Softseal Valve, VS18SA11DF213A

AVAILABLE ON REQUEST

About This Product

Key Features

Ul & Atex.
Wide Range of Accessories.
Universal PNP/NPN 24 V DC Multipole.
Field Expandable with Single Add-on Stations.
Multipole or Integrated Fieldbus for Installation Flexibility.

Show All Key Features

Product Specifications

Brand	Norgren
Actuator Type	Solenoid/Solenoid
Ambient Temperature	-15 to 50 deg C
Applications	Standard Environment
Body Material	Die Cast Aluminium
Dimensions	11.2x5.4x1.8 cm
Guiding Systems	2x 3/2 NC
Manual Override	Push & Return
Material	Softseal Spool: Aluminium with HNBR Seals Plastic Parts: POM, PA, PPA Mounting Screw: Steel, Zinc Coated Spring: Stainless Steel Sandwich Plates: Aluminium Bar Material, PA Electrical Contacts: Brass, Tin Gold Coated PCB: Glass Epoxy
Medium	Compressed air, Filtered to 40 µm, Lubricated & Non-Lubricated
Model	VS18SA11DF213A
Mounting type	Sub-Base
Notes	Box Opening Video will be Required for any Type of Exchange
Operating Pressure	10 bar
Pilot Supply	Internal
Series	VS18
Technology	Spool: Softseal
Voltage	24 V DC
Weight	200 g
Country of origin	India
Manufacturer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Packer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Common/Generic Name	Solenoid Actuated Softseal Valve
Dimensions LxWxH	11.2x5.4x1.8 cm
Weight	200 g

Show All Specifications

Product Details

Norgren Double Solenoid Actuated Softseal Valve, VS18SA11DF213A is a premium quality product from Norgren . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Solenoid Valve. All Norgren Double Solenoid Actuated Softseal Valve, VS18SA11DF213A are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Norgren Double Solenoid Actuated Softseal Valve, VS18SA11DF213A, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Norgren products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Norgren Pneumatic Solenoid Valve .
