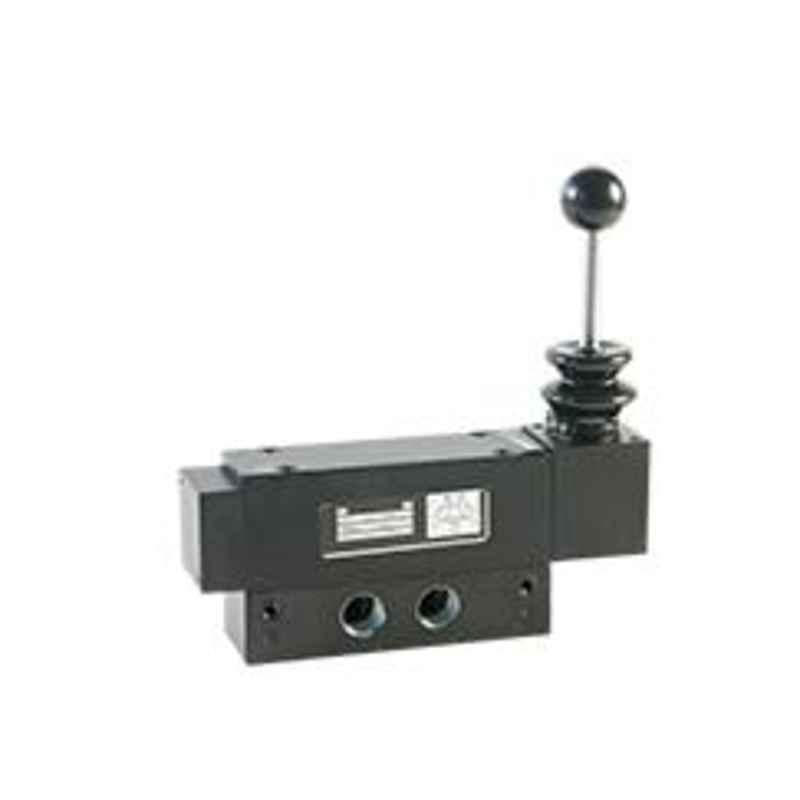

Norgren G 1/2 Manually Actuated Spool Valve, M/1704/687

AVAILABLE ON REQUEST

About This Product

Key Features

Compact, Well Proven Range.
Perfectly Suited to Many Applications.
Air Assisted Detent Ensures Positive Valve Location.
Simple Servicing & Sub-Base Mounting for Reduced Down-Time.

Show All Key Features

Product Specifications

Brand	Norgren
Actuator Type	Lever/Spring/Lever
Ambient Temperature	-20 to 80 deg C
Body Material	Pressure Die Cast Zinc Alloy
Dimensions	21.8x14.6x5 cm
Flow Rate	3200 lpm
Functions	5/3
Material	Spool: Aluminium Mechanism: Steel & Plastic Centering Seals: NBR
Medium	Compressed air, Filtered, Lubricated & Non-Lubricated
Model	M/1704/687
Notes	Box Opening Video will be Required for any Type of Exchange
Operating Force	42 N
Operating Pressure	2 to 10 bar
Operation	Spool Valve, Directly Actuated
Port Size	G 1/2
Weight	2400 g
Country of origin	India
Manufacturer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Packer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Common/Generic Name	Solenoid Actuated & Pilot Operated Spool Valve
Dimensions LxWxH	21.8x14.6x5 cm
Weight	2.4 kg

Show All Specifications

Product Details

Norgren G 1/2 Manually Actuated Spool Valve, M/1704/687 is a premium quality product from Norgren . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Solenoid Valve. All Norgren G 1/2 Manually Actuated Spool Valve, M/1704/687 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Norgren G 1/2 Manually Actuated Spool Valve, M/1704/687, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Norgren products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Norgren Pneumatic Solenoid Valve .
