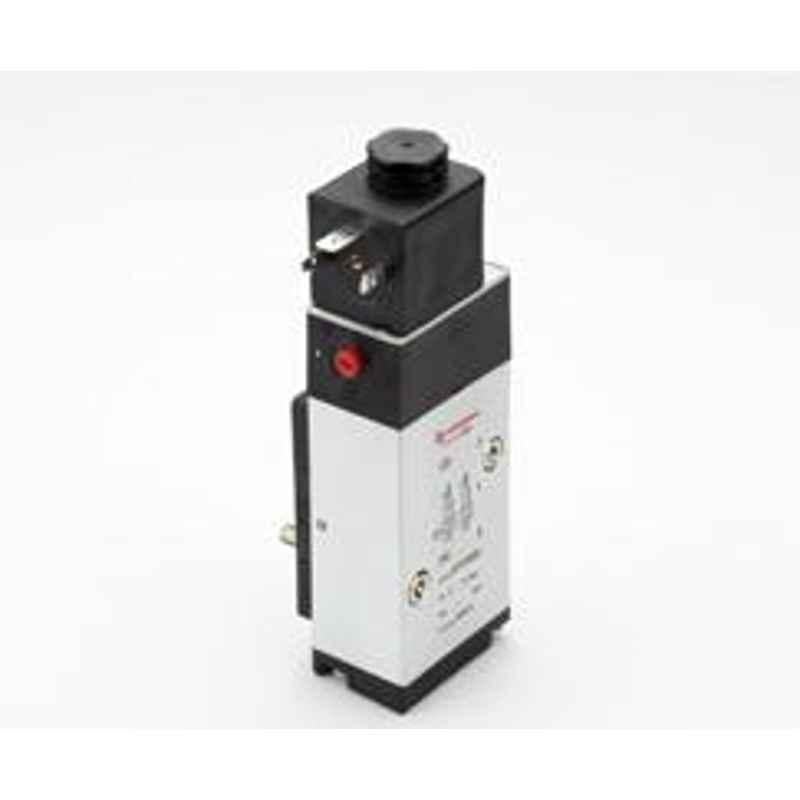

Norgren G 1/4 Indirect Solenoid Actuated Spool Valve, 9710002303402400

AVAILABLE ON REQUEST

About This Product

Key Features

Manual Override with Detent.
Exhaust Air Recirculation.
Rest Position in the Event of Power Failure.
3/2 or 5/2 Way Function Via Adapter Plates.
Crossover-Free Switching, Switch-Over Function Guaranteed Even with Small Cross Section Air Supply.

Show All Key Features

Product Specifications

Brand	Norgren
Actuator Type	Solenoid/Solenoid
Ambient Temperature	-15 to 50 deg C
Dimensions	16x9x6.3 cm
Flow Rate	750 lpm
Functions	5/2 Way, Spring Return
Housing Material	Aluminium Anodized
Material	Pilot Flange: Plastic Flange Plate: Aluminium Seals: NBR
Medium	Filtered, Lubricated or Non-Lubricated & Dry Compressed Air
Model	9.71E+15
Notes	Box Opening Video will be Required for any Type of Exchange
Operating Pressure	2 to 8 bar
Operation	Indirect Solenoid Operated Spool Valve
Port Size	G 1/4
Weight	427 g
Country of origin	India
Manufacturer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Packer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Common/Generic Name	Solenoid Actuated & Pilot Operated Spool Valve
Dimensions LxWxH	16x9x6.3 cm
Weight	427 g

Show All Specifications

Product Details

Norgren G 1/4 Indirect Solenoid Actuated Spool Valve, 9710002303402400 is a premium quality product from Norgren . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Solenoid Valve. All Norgren G 1/4 Indirect Solenoid Actuated Spool Valve, 9710002303402400 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Norgren G 1/4 Indirect Solenoid Actuated Spool Valve, 9710002303402400, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Norgren products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Norgren Pneumatic Solenoid Valve .
