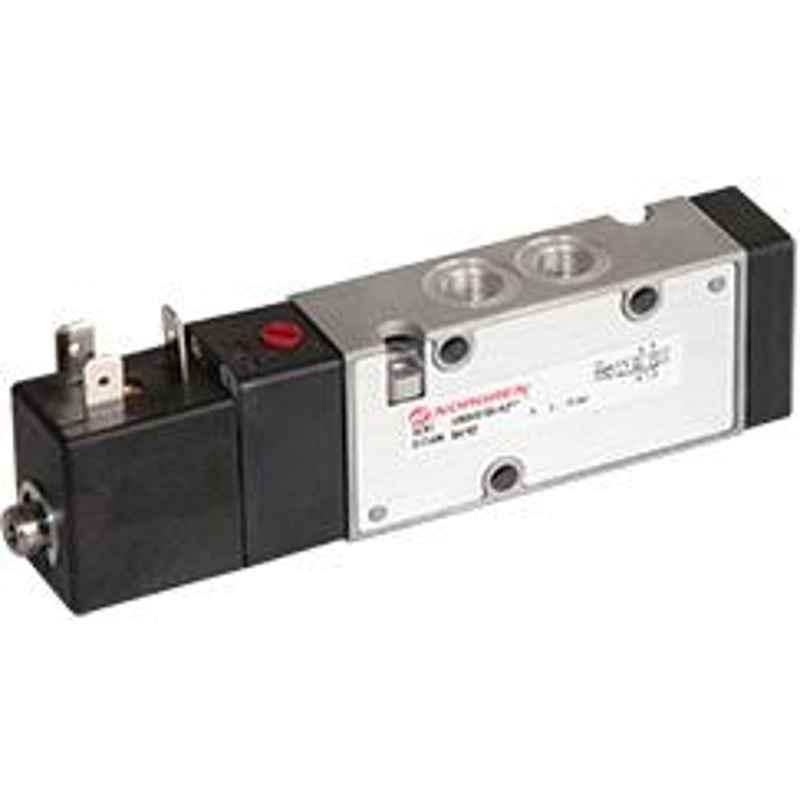

Norgren G1/8 Solenoid & Pilot Actuated Spool Valve, V60A513A-A213J

AVAILABLE ON REQUEST

About This Product

Key Features

High Flow Rate at Small Size.
Low Power Consumption.
Manifold System for Easy Assembly.
Different Pressure Ranges Possible.
Proven Sealing System, Maintenance-Free.
Different Manual Override Options Available.

Show All Key Features

Product Specifications

Brand	Norgren
Actuator Type	Sol/Air Spring
Ambient Temperature	-10 to 50 deg C
Dimensions	17x6.4x3 cm
Flow Rate	500 to 4500 lpm
Functions	5/2
Housing Material	Die-Cast Aluminium Alloy
Interface	Plug: 22 mm, Industrial Standard
Manual Override	Pushed, Locked Position
Material	Base Plate: Aluminium Static & Dynamic Seals: NBR & FPM Plastic Parts: PA, PBT with GF
Medium	Compressed air, Filtered Lubricated or Non-Lubricated
Model	V60A513A-A213J
Mounting type	Optional, Spring Return Valves, Preferably Horizontal
Notes	Box Opening Video will be Required for any Type of Exchange
Operation	Electromagnetically or Pneumatically Controlled
Pilot Supply	Internal
Valve Size	G1/8
Voltage	24 V DC
Weight	210 g
Country of origin	India
Manufacturer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Packer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Common/Generic Name	Solenoid & Pilot Actuated Spool Valve
Dimensions LxWxH	17x6.4x3 cm
Weight	210 g

Show All Specifications

Product Details

Norgren G1/8 Solenoid & Pilot Actuated Spool Valve, V60A513A-A213J is a premium quality product from Norgren . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Solenoid Valve. All Norgren G1/8 Solenoid & Pilot Actuated Spool Valve, V60A513A-A213J are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Norgren G1/8 Solenoid & Pilot Actuated Spool Valve, V60A513A-A213J, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Norgren products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Norgren Pneumatic Solenoid Valve .
