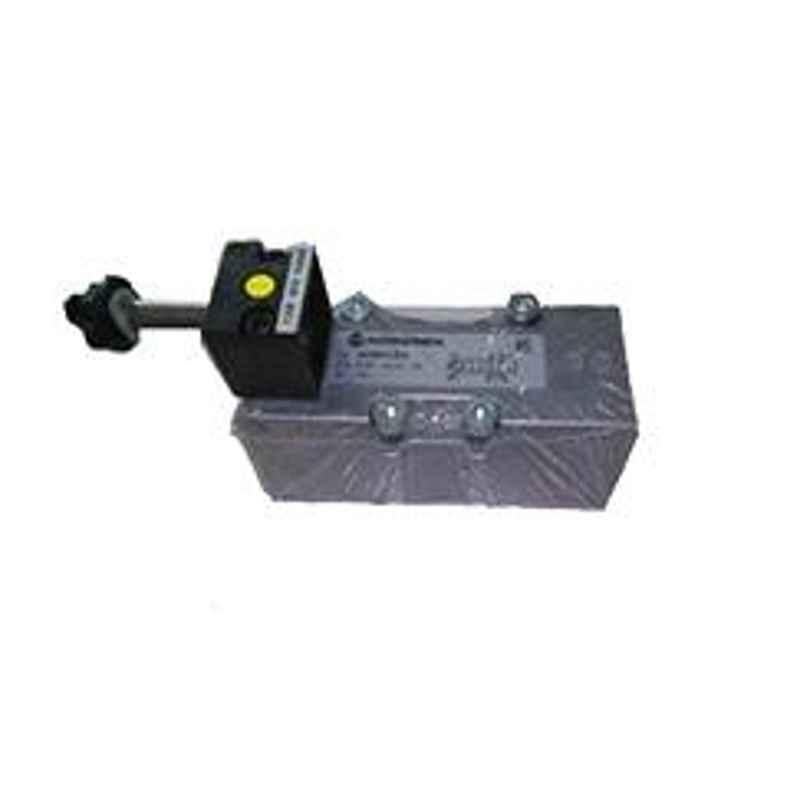

Norgren Solenoid Actuated Valve, SXE9573-Z70-00K

AVAILABLE ON REQUEST

About This Product

Key Features

Wide Range of Sub-Bases & Accessories.
Specially Coated Glandless Spool & Sleeve for Extremely Long Life.
Low Power Solenoids & Manual Override as Standard.
Impulse Actuated Bistable Valve with Detent Mechanism.
Integrated Flow Regulators Available on ISO 1 & 2 Sizes for Cylinder Speed Control.

Show All Key Features

Product Specifications

Brand	Norgren
Ambient Temperature	Pilot: -15 to 80 deg C Solenoid: -15 to 50 deg C
Body Material	Die-Cast Aluminium
Dimensions	8.4x4x3.2 cm
Integrated Flow Control	Without Flow Regulator(Solenoid & Spring)
Manual Override	Push & Turn to Lock(Standard-End Solenoid)
Material	Spool & Sleeve: Hard Anodized Aluminium with Special PTFE Coating Seals: NBR Locking Plate: Die Cast Zinc Screws: Steel, Blue Zinc Coated Plastic Parts: POM Flow Regulator: Brass
Medium	Compressed air, Filtered Lubricated or Non-Lubricated
Model	SXE9573-Z70-00K
Notes	Box Opening Video will be Required for any Type of Exchange
Operating Pressure	Solenoid Valves: 10 or 16 bar Depending upon Solenoid Pilot Operator Air Pilot Operated Valve: 16 bar
Operation	Glandless Spool Valve, Solenoid Pilot or Air Pilot Actuated
Pilot Supply	Internal(Double Solenoid or Single Solenoid/Air Spring)
Size	ISO 1
Solenoid Position	CNOMO Solenoid Actuated Valve
Valve Function	5/2 Solenoid/Spring, Monostable Valve
Weight	240 g
Country of origin	India
Manufacturer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Packer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Common/Generic Name	Solenoid Actuated Valve
Dimensions LxWxH	8.4x4x3.2 cm
Weight	240 g

Show All Specifications

Product Details

Norgren Solenoid Actuated Valve, SXE9573-Z70-00K is a premium quality product from Norgren . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Solenoid Valve. All Norgren Solenoid Actuated Valve, SXE9573-Z70-00K are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Norgren Solenoid Actuated Valve, SXE9573-Z70-00K, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Norgren products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Norgren Pneumatic Solenoid Valve .
