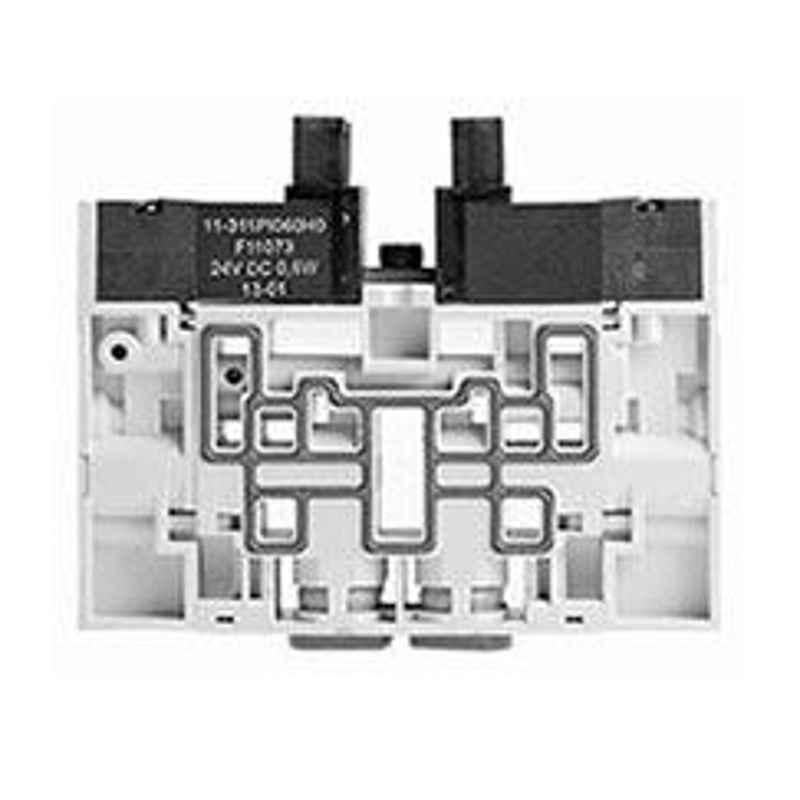

Norgren Valve Slice, VM104C11AB313B

AVAILABLE ON REQUEST

About This Product

Key Features

Compact & Lightweight.
Integral Push In Fittings.
High Flow from 10 mm (Vm10) Valve Width.
Long Life Upto 100 Million Cycles.
Fieldbus, Multipole or Individually Wired for Installation Flexibility.

Show All Key Features

Product Specifications

Brand	Norgren
Actuator Type	Solenoid/Solenoid
Ambient Temperature	-5 to 50 deg C
Body Material	Engineered PPA Co-Polymer
Design	ISO G, Parallel
Dimensions	12x8x8 cm
Manual Override	Push Only
Material	Spool: Aluminium Seals: NBR
Medium	Compressed air, Filtered, Lubricated & Non-Lubricated
Model	VM104C11AB313B
Notes	Box Opening Video will be Required for any Type of Exchange
Operating Pressure	-0.9 to 10 bar
Operation	Spool Valve Indirectly Actuated
Pilot Supply	Internal
Series	VM10
Tube Size	4 mm PIF
Valve Function	2x 3/2 NC & NO
Weight	340 g
Country of origin	India
Manufacturer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Packer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Common/Generic Name	Valve Slice
Dimensions LxWxH	12x8x8 cm
Weight	340 g

Show All Specifications

Product Details

Norgren Valve Slice, VM104C11AB313B is a premium quality product from Norgren . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Solenoid Valve. All Norgren Valve Slice, VM104C11AB313B are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Norgren Valve Slice, VM104C11AB313B, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Norgren products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Norgren Pneumatic Solenoid Valve .
